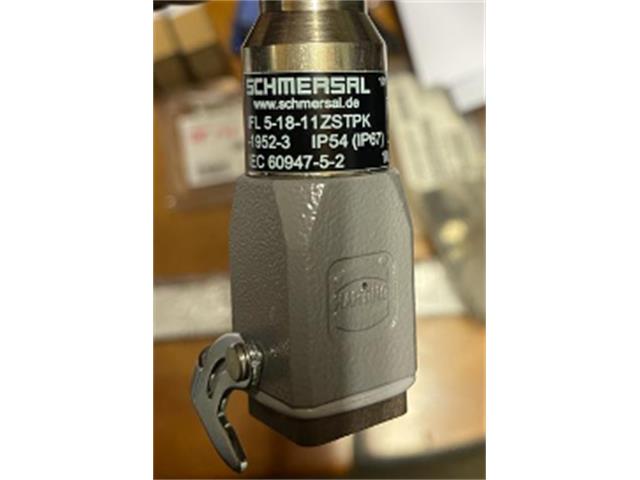

IFL 5-18-11ZSTPK-1952-2

Name: IFL 5-18-11ZSTPK-1952-2 - Communica [Part No: IFL 5-18-11ZSTPK-1952-2]
Brand: Schmersal
SKU: IFL 5-18-11ZSTPK-1952-2
Price: 7790 ZAR
Availability: OutOfStock

SKU: IFL 5-18-11ZSTPK-1952-2

BRAND: Schmersal

Sold Out
R 8,958.50_{(inc VAT)}
R 7,790.00_{(ex VAT)}

Collections: Sensors

Type: Proximity Sensors

Category: M18 Inductive Proximity Sensor

Schmersal M18 Inductive Proximity Sensor 10-60VDC @ 100mA - Sensing Distance 5mm. IP67

M18 Inductive Proximity Sensor

Specifications

General data

Standards	DIN VDE 0660-208 IEC/EN 60947-5-2
Housing construction form	Cylinder, thread
Installation conditions (mechanical)	flush
Enclosure material	Brass
Enclosure coating material	nickel-plated
Active area	Plastic
Material of the nuts	Brass
Gross weight	255 g

General data - Features

Integral system diagnostics, status	Yes
Number of cable wires	4

Mechanical data

Tightening torque of nuts, maximum	18 Nm

Mechanical data - Switching distances according EN IEC 60947-5-3

Switching distance	5 mm

Mechanical data - Connection technique

Termination	Harting Han 7D

Mechanical data - Dimensions

ISO thread of the sensor	M18
width across flats	24 BK

Ambient conditions

Degree of protection	IP67
Ambient temperature, minimum	-25 °C
Ambient temperature, maximum	+110 °C
Resistance to vibration to EN 60068-2-6	10 … 55 Hz, amplitude 1 mm
Restistance to shock	30 g / 11 ms
Protection class	0

Electrical data

Operating voltage, minimum	10 V
Operating voltage, maximum	60 V
No-load supply current, maximum I₀	4.8 mA
Operating current	100 mA
Switching element	NO contact and NC contact (antivalent)
Protection circuit integrated	Protection against polarity reversal Surge protection Max. fuse rating
Switching frequency, approx.	500 Hz

Electrical data - Digital Output

Voltage drop U_d, maximum	1.5 V
Current at Voltage drop U_d	0.4 A
Design of control elements	p-type

Status indication

Note (Integral System Diagnostics, status )	yellow LED

Downloads

Datasheet - IFL 5-18-11ZSTPK-1952-2

Additional Information

Device	Sensor
Type	M18 \| Inductive \| Proximity
