IGS203AM (KEY#2341) - Switches -
IGS203AM (KEY#2341) - Switches -
IGS203AM (KEY#2341) - Switches -
IGS203AM (KEY#2341) - Switches -

IGS203AM (KEY#2341)

SKU: IGS203AM (KEY#2341)

BRAND: Communica


Sold Out

Collections: Electromechanical, New Arrivals

Type: Switches

Category: Key Switches, New

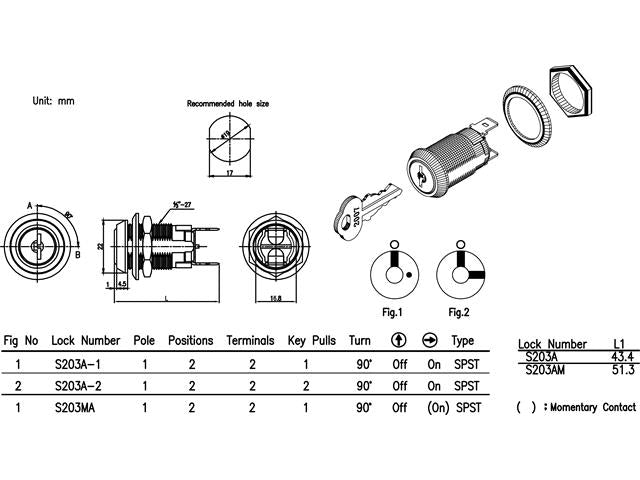

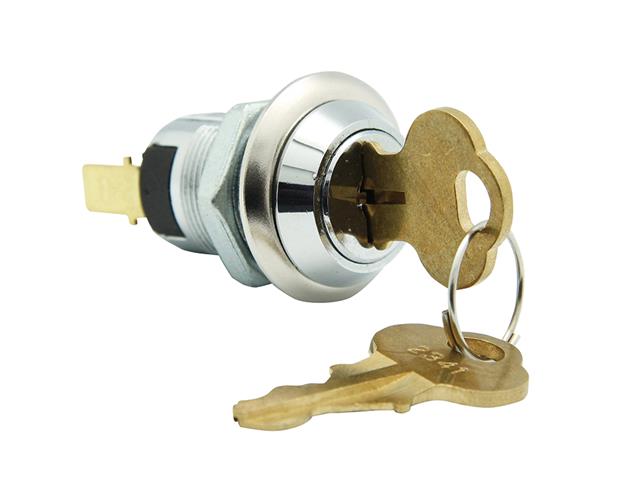

Key Switch Standard Round 19mm SPST Key Pull 1 OFF (ON) 2 Spade Terminals 2A 250VAC

Key Switch Standard Round

Feature(s)

  • Zinc alloy die cast housing and cylinder
  • Bright chrome plated standard
  • 11 disc tumbler mechanism
  • Double-bitted brass keys
  • S203A 2 position (off-on) 2 spade terminals
  • S203AM 2 position (off-on) 2 spade terminals, spring
  • loaded for momentary contact
  • Hex nut mounted

Specifications

  • Contact Rating: 4A 125VAC, 2A 250VAC
  • Contact Resistance: 50Milli-Ohms Max
  • Insulation Resistance: 500 Meg-Ohms Min. (500VDC)
  • Dielectric Strength: 1500 VAC -1 Minute

Additional Information

Device Key Switch
Type Sandard | Round
