IKA15N65H5XKSA1

Name: IKA15N65H5XKSA1 - Communica [Part No: IKA15N65H5XKSA1]
Brand: Infineon
SKU: IKA15N65H5XKSA1
Price: 36.50 ZAR
Availability: OutOfStock

SKU: IKA15N65H5XKSA1

BRAND: Infineon

Sold Out
R 41.98_{(inc VAT)}
R 36.50_{(ex VAT)}

Collections: Semiconductors

Type: Transistors

Category: IGBT Transistors

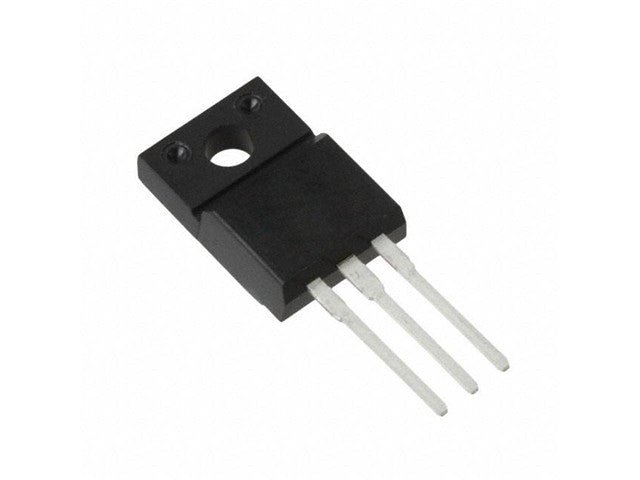

IGBT 650V 15A 33.3W TO220F

Specifications

Voltage - Collector Emitter Breakdown (Max)	650 V
Current - Collector (Ic) (Max)	14 A
Current - Collector Pulsed (Icm)	45 A
Vce(on) (Max) @ Vge, Ic	2.1V @ 15V, 15A
Power - Max	33.3 W
Switching Energy	120µJ (on), 50µJ (off)
Input Type	Standard
Gate Charge	38 nC
Td (on/off) @ 25°C	17ns/160ns
Test Condition	400V, 7.5A, 39Ohm, 15V
Reverse Recovery Time (trr)	48 ns
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3

Downloads

Datasheet - IKA15N65H5XKSA1

Additional Information

Device

Transistor

The IKA15N65H5XKSA1 is a high-performance 650V IGBT transistor, delivering 15A continuous current and 33.3W power. With exceptional efficiency and fast switching capabilities, it’s perfect for demanding applications, ensuring reliable operation in extreme temperatures. Upgrade your projects with this durable and versatile component!
