INT-FIRE DETECTOR W/LESS

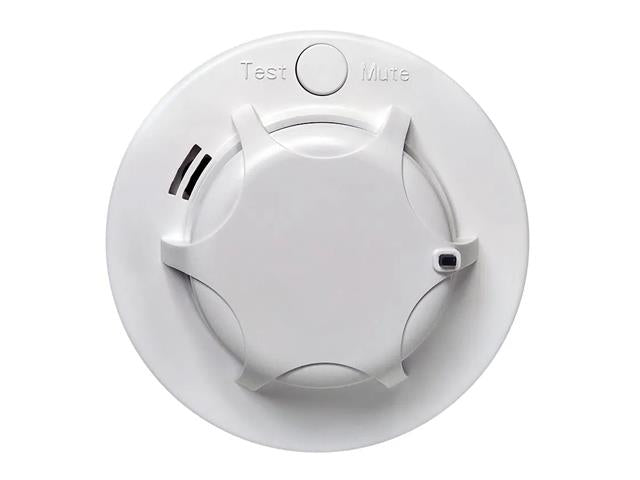

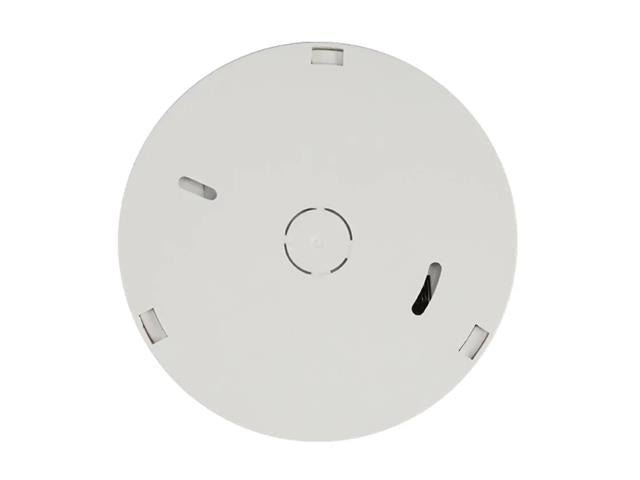

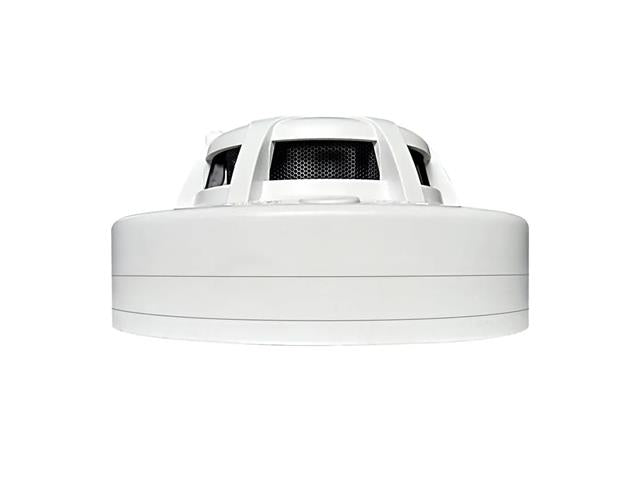

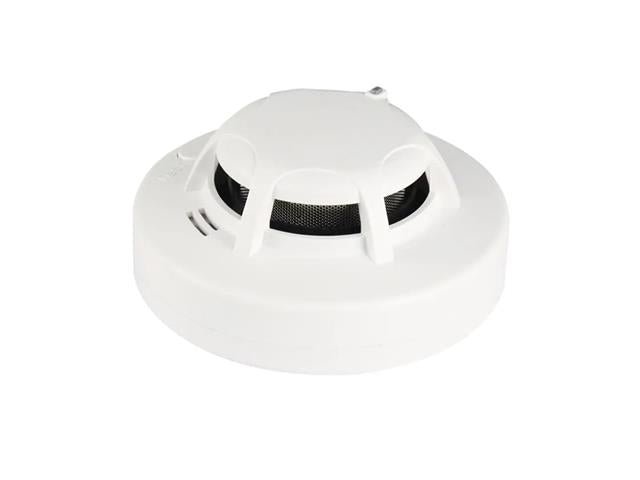

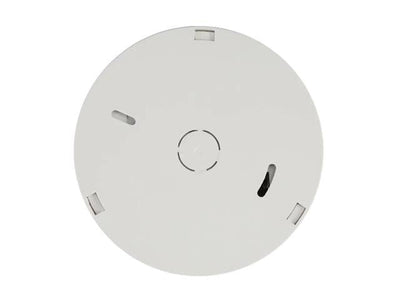

This product is a Photoelectronic Smoke and Heat Detector. With a unique structure design and an intelligent MCU to process photoelectronic signals, it is provided with dust-proof, mothproof and anti-light interference etc. functions, ensuring the detector stability from design basis. It reacts very quick to visible smoke released by smoldering fire and flaming fire. It has Photoelectronic smoke sensor and heat sensor inside,the detector will alarm when the temperature up to alarm temperature or the smoke reach the alarm level. It’s suitable for fire alarm in houses, factories, shopping malls, hotels, restaurants, office buildings, teaching buildings, banks, libraries, Warehouses, etc..

• Adopts MCU Auto-Processing Technology
• Heat sensor + smoke sensor
• Push Button
• Malfunction Auto-Check
• Auto-Reset After Trigger
• Infrared Photoelectronic Sensor
• Sound & Flash Alarm / LED Indicating Alarm
• SMT Manufacture Technology, Reliable Stability
• Dust-proof, Moth-proof, Anti White Light Interference
• Anti-RF Interference (20V/m- 1GHz)

• Operating Voltage :
  • 9V battery (6F22 carbon battery, DC TYPE)
  • AC220V /1 10V with 9V backup battery (AC TYPE)
• Static current : ≤10uA
• Alarm current: ≤35mA
• Sensitivity: 2.06%/ft ±1.3
• Alarm Temperature: 54 °C ~ 65 °C
• Alarm Indication : LED Flashes in Red
• Alarm Sound: > 85dB/3m
• Radio Frequency : 315MHz/433MHz
• Code form : 2262 code
• Radio Transmitting Distance : 200m (open area)
• Operating Temperature : -10 "C ~ +50 °C
• Humidity : ≤95 % RH
• Dimension : ø l28x38mm
• Execution Standard: GB47l5, GB47l6, ENl4604, UL2l7
• Detecting Area :
  • 80m² @ 6~l2m installation height
  • 60m² @ installation height <6m
