INT-PIR DUAL PET OD WIRED

Name: INT-PIR DUAL PET OD WIRED - Communica [Part No: INT-PIR DUAL PET OD WIRED]
Brand: Integra
SKU: INT-PIR DUAL PET OD WIRED
Price: 781.74 ZAR
Availability: OutOfStock

SKU: INT-PIR DUAL PET OD WIRED

BRAND: Integra

Sold Out
R 899.00_{(inc VAT)}
R 781.74_{(ex VAT)}

Collections: Clearance Sale, Security, Access Control & Surveillance

Type: Alarms & Accessories

Category: Clearance Sale, PIR

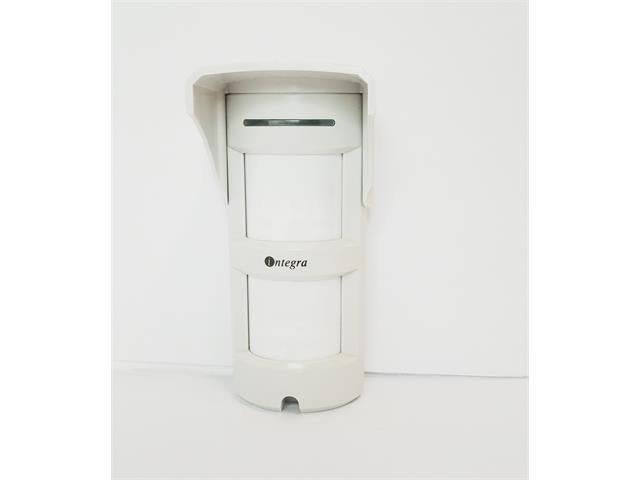

Outdoor Wired Dual PIR Detector (25KG Pet Immunity) For Integra Alarm Panels. NOTE : Wireless Model has DC Cable coming out of unit (Wired Model does not have the DC Cable)

Features

Adopts Microprocessor
Special filter lens, White light immunity 10000Lux
Bug guard
Dual sensor to prevention false alarms
Temperature auto-compensation to adapt environment change
Alarm output N.C/N.O optional to adapt different alarm system
Pet (<20kg) Immunity

Specifications

Working voltage : 9-16V
Working current : <28mA(l2Vdc)
Detecting range : Wide-angle lens l2m, curtain lens Sm
Detecting range : Wide angle lens ll0 ° ,curtain lens 15 °
Sensor type : Dual element low-noise pyroelectric infrared sensor
Warm-up time : 60Sec
Pulse count : Wide angle 1P and 2P, curtain 1P only
Installation : Wall hanging
Mount height : Optional height 2.2m
Operation temperature : -10°C~50°C(14°F~l22°F)
Relay output : N.C/N.O optional, contact rating 28Vdc, 80mA
Anti-tamper switch : NC. Without voltage output contact rating 28VDC, lO0mA
Size : 157x70x42mm

Additional Information

Device	PIR
Type	Integra Wired
Highlights	Dual \| Pet \| Outdoor \| Wired
