INT-PIR PET ID W/LESS 9VDC

Name: INT-PIR PET ID W/LESS 9VDC - Communica [Part No: INT-PIR PET ID W/LESS 9VDC]
Brand: Integra
SKU: INT-PIR PET ID W/LESS 9VDC
Price: 209.65 ZAR
Availability: InStock

SKU: INT-PIR PET ID W/LESS 9VDC

BRAND: Integra

In Stock
R 241.10_{(inc VAT)}
R 209.65_{(ex VAT)}

Collections: Security, Access Control & Surveillance

Type: Alarms & Accessories

Category: PIR

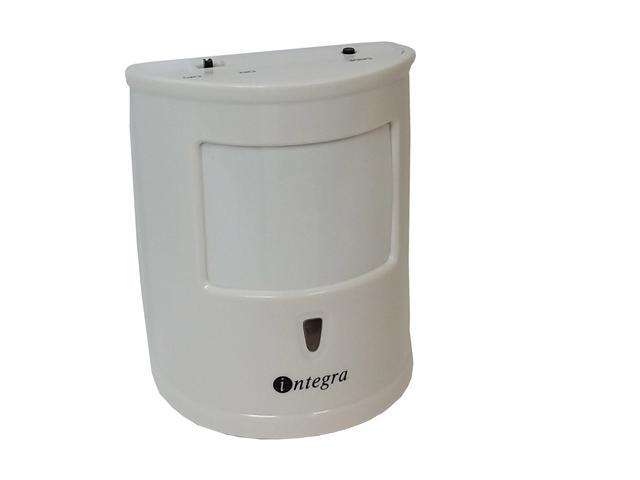

Indoor Wireless Pet Immune PIR for Integra Alarm Panel with 10~12m Detection Distance at 1,8~2,4m Mounting Height

Overview

Features

The digital analysis of environmental variable based on microprocessor to prevent false alarm
Programmable pulses counter controls detection sensitivity
Temperature compensation controlled by Microprocessor
State-of-the-art SMT, inhibit RFI, EMI interference
Low current consumption and normal mode to prolong battery life
Immunity to pets weighing up to 10Kg
Low-battery status LED indication

Specification

Battery Supply : 9VDC
Current drain

Transmit Current Drain : <17mA (9VDC)
Standby Current Drain : <28uA (9VDC)

Detection Distance : 10~12m (25°C)
Detection Angle : Horizontal 110°
Transmit Range : 80m (no barriers)
Frequency : 315MHz,433.92MHz
Alarm Indication : LED lights for 2-3 seconds
Pulse Counter : '1', '2', ‘3' pulse selectable (default: ‘1')
Sensor : Dual element low noise puroelectric thennal sensor
Mounting : Mounting height 1 .8-2.4m
Temperature

Operating temperature: -10°C ~50°C
Storage temperature: -20°C ~60°C

Dimension : 96x75x42mm
