IR2104

Name: IR2104 - Communica [Part No: IR2104]
Brand: Communica
SKU: IR2104
Price: 28.95 ZAR
Availability: OutOfStock

SKU: IR2104

BRAND: Communica

Sold Out
R 33.29_{(inc VAT)}
R 28.95_{(ex VAT)}

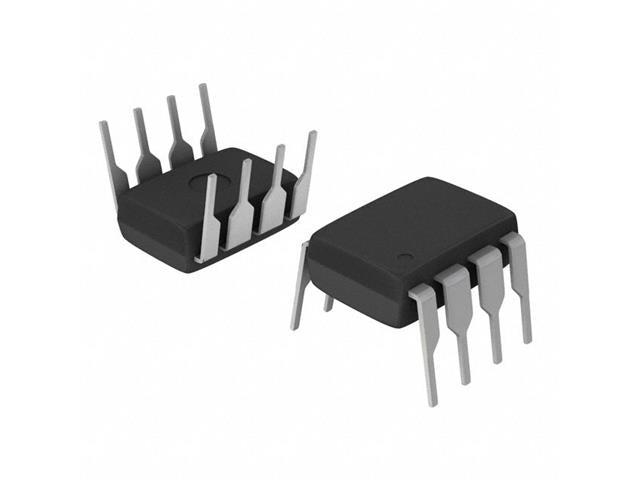

Half-Bridge Driver 600V 270mA 8PDIP

Specifications

Driven Configuration	Half-Bridge
Channel Type	Synchronous
Number of Drivers	2
Gate Type	IGBT, N-Channel MOSFET
Voltage - Supply	10V ~ 20V
Logic Voltage - VIL, VIH	0.8V, 3V
Current - Peak Output (Source, Sink)	210mA, 360mA
Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	600 V
Rise / Fall Time (Typ)	100ns, 50ns
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	8-DIP (0.300", 7.62mm)
Supplier Device Package	8-PDIP

Device

Driver
