IRF2804

Name: IRF2804 - Communica [Part No: IRF2804]
Brand: Communica
SKU: IRF2804
Price: 34.38 ZAR
Availability: OutOfStock

SKU: IRF2804

BRAND: Communica

Sold Out
R 39.54_{(inc VAT)}
R 34.38_{(ex VAT)}

Collections: Semiconductors

Type: Transistors

Category: N Channel Mosfet Transistor

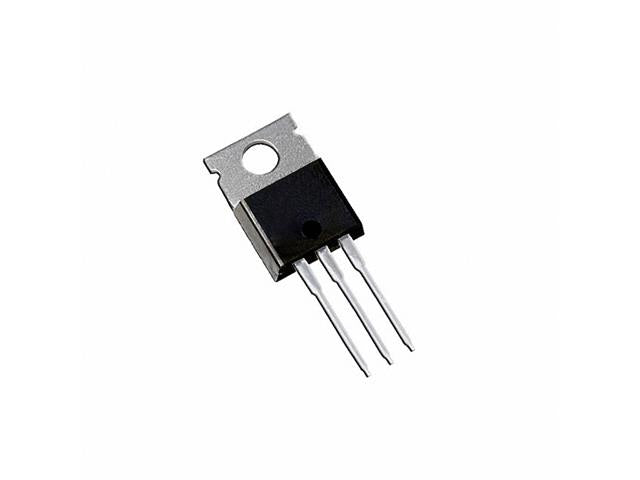

N-MOSFET 40V 75A TO220 (RDS= 0,002 OHM)

N-MOSFET 40V 75A TO220

Specifications

FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	75A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	2.3mOhm @ 75A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	240 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6450 pF @ 25 V
Power Dissipation (Max)	330W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220AB

Downloads

Datasheet - IRF2804

Additional Information

Device

Transistor

Discover the IRF2804 N-MOSFET, a powerful 40V, 75A solution designed for high-efficiency performance. With an ultra-low RDS(on) of just 2.3mOhm, it ensures minimal energy loss and superior heat management. Ideal for demanding applications, this TO-220 package offers reliability and robust operation in extreme temperatures. Upgrade your projects with the IRF2804 for exceptional performance and reliability.
