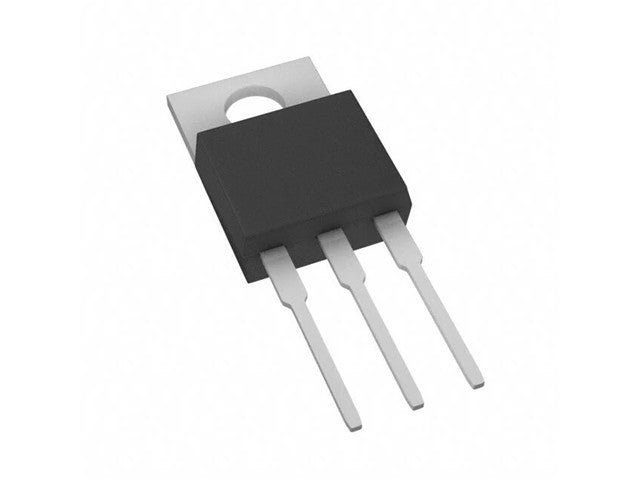

IRFBC30

Name: IRFBC30 - Communica [Part No: IRFBC30]
Brand: Communica
SKU: IRFBC30
Price: 19.75 ZAR
Availability: InStock

SKU: IRFBC30

BRAND: Communica

R 22.71_{(inc VAT)}
R 19.75_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Transistors

Category: N Channel Mosfet Transistor

N-Channel MOSFET 600V 3,6A 74W

N-Channel MOSFET Transistor

Specifications

FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	3.6A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	2.2Ohm @ 2.2A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	31 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	660 pF @ 25 V
Power Dissipation (Max)	74W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220AB

Additional Information

Device

Transistor

Upgrade your circuit performance with the IRFBC30 N-Channel MOSFET, featuring a robust 600V, 3.6A rating. Its low on-resistance and high power dissipation ensure efficient operation, making it perfect for demanding applications. With a wide operating temperature range and reliable performance, the IRFBC30 is your go-to choice for enhanced electronic designs.
