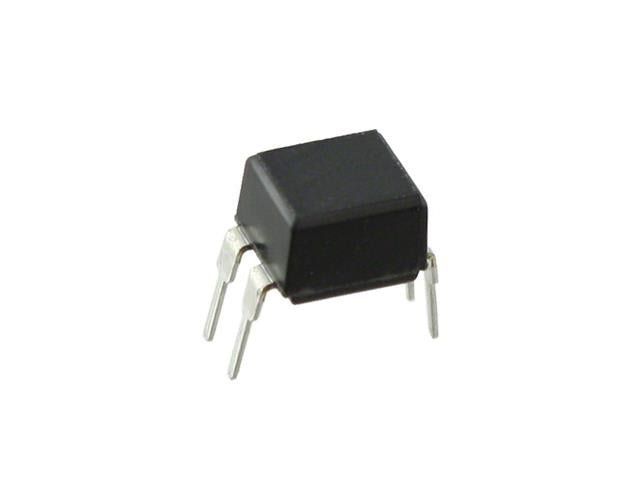

IRFD9120

Name: IRFD9120 - Communica [Part No: IRFD9120]
Brand: Vishay
SKU: IRFD9120
Price: 9.38 ZAR
Availability: InStock

SKU: IRFD9120

BRAND: Vishay

R 10.79_{(inc VAT)}
R 9.38_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Transistors

Category: P Channel Mosfet Transistor

SIP MOS 100V -1,0A 0,6R 1,25W HD-1

Specifications

Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	600mOhm @ 600mA, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	18 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	390 pF @ 25 V
Power Dissipation (Max)	1.3W (Ta)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	4-HVMDIP

Downloads

Datasheet - IRFD9120

Additional Information

Device

Transistor

Discover the IRFD9120, a high-performance transistor designed for efficiency with a 100V drain-source voltage and low on-resistance of just 0.6Ω. Perfect for reliable power management in demanding applications, it operates in extreme temperatures from -55°C to 175°C. Upgrade your projects with this durable, cost-effective solution that ensures optimal performance and reliability.
