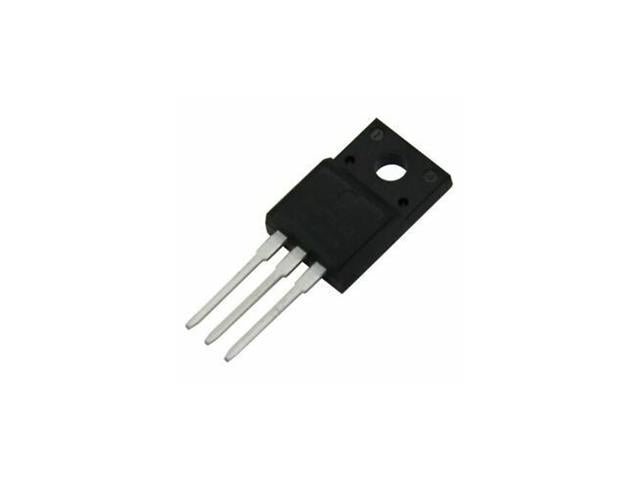

IRFI540N

Name: IRFI540N - Communica [Part No: IRFI540N]
Brand: Communica
SKU: IRFI540N
Price: 16.25 ZAR
Availability: OutOfStock

SKU: IRFI540N

BRAND: Communica

Sold Out
R 18.69_{(inc VAT)}
R 16.25_{(ex VAT)}

Collections: Semiconductors

Type: Transistors

Category: N Channel Mosfet Transistor

SIP MOS N-CH 100V 30A TO220F

Specifications

Budgetary Price €/1k	0.59
I_D(@25°C) max	20 A
Mounting	THT
Operating Temperature min max	-55 °C 175 °C
P_tot max	42 W
Package	TO-220 FullPAK
Polarity	N
Q_G (typ @10V)	62.7 nC
Q_gd	28.7 nC
R_{DS (on)} (@10V) max	52 mΩ
R_thJC max	2.8 K/W
T_j max	175 °C
V_DS max	100 V
V_GS(th) min max	3 V 2 V 4 V
V_GS max	20 V

Downloads

Datasheet - IRFI540N

Additional Information

CatGroup

Field Effect Transistor

Discover the IRFI540N, a high-performance N-channel MOSFET designed for reliability and efficiency. With a maximum voltage rating of 100V and a current capacity of 30A, this TO-220 package transistor ensures optimal thermal performance and minimal resistance. Perfect for various applications, it operates smoothly in extreme temperatures, making it an ideal choice for your electronic projects. Upgrade your circuits with the IRFI540N today for enhanced durability and power efficiency.
