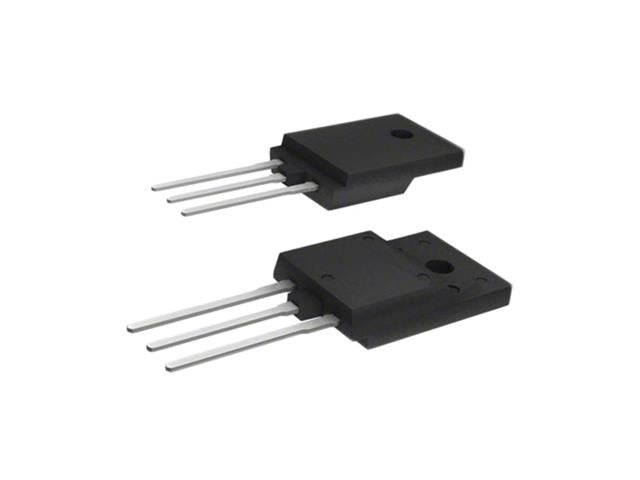

IRFIZ48N

Name: IRFIZ48N - Communica [Part No: IRFIZ48N]
Brand: Communica
SKU: IRFIZ48N
Price: 19.88 ZAR
Availability: OutOfStock

SKU: IRFIZ48N

BRAND: Communica

Sold Out
R 22.86_{(inc VAT)}
R 19.88_{(ex VAT)}

SIP MOS N-CH 55V 36A 0.016R TO220

Specifications

FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	55 V
Current - Continuous Drain (Id) @ 25°C	36A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	16mOhm @ 22A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	89 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1900 pF @ 25 V
Power Dissipation (Max)	42W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	PG-TO220-FP

CatGroup	Field Effect Transistor
Device	Thransistor
