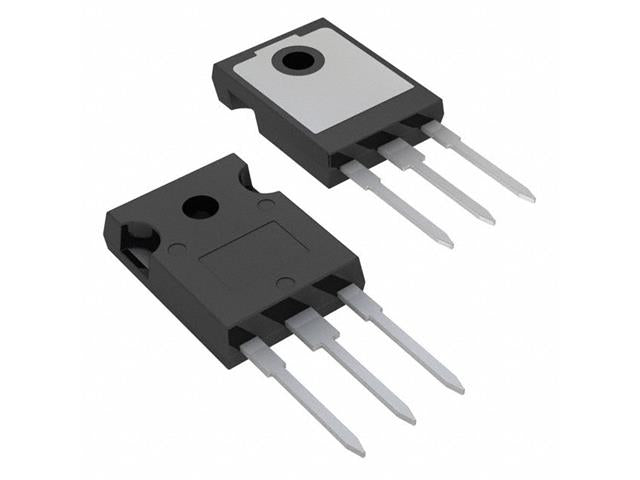

IRFP7430

Name: IRFP7430 - Communica [Part No: IRFP7430]
Brand: Communica
SKU: IRFP7430
Price: 48.95 ZAR
Availability: InStock

SKU: IRFP7430

BRAND: Communica

R 56.29_{(inc VAT)}
R 48.95_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Transistors

Category: N Channel Mosfet Transistor

SIP MOS N-CH 40V 195A 1.3mΩ TO247AC

N-CH 40V 195A 1.3mΩ TO247AC

Specifications

FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	195A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	1.3mOhm @ 100A, 10V
Vgs(th) (Max) @ Id	3.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	460 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	14240 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	366W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247AC
Package / Case	TO-247-3

Downloads

Datasheet - IRFP7430

Additional Information

Device

Transistor

Unlock superior performance with the IRFP7430 N-Channel MOSFET. With a robust 40V, 195A capacity and ultra-low on-resistance of 1.3mΩ, it ensures efficient power management for your electronic projects. Designed for high reliability in demanding conditions, this TO-247 package is perfect for enhancing your circuit's efficiency and longevity.
