IRFS3004

Name: IRFS3004 - Communica [Part No: IRFS3004]
Brand: Communica
SKU: IRFS3004
Price: 21 ZAR
Availability: InStock

SKU: IRFS3004

BRAND: Communica

R 24.15_{(inc VAT)}
R 21.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Transistors

Category: N Channel Mosfet Transistor

High Efficiency Synchronous Rectification SMPS D2PAK (3Pin) 40V 280A 380W

Specifications

Maximum Drain Current (ID) @ 25°C: 340 A
Moisture Sensitivity Level (MSL): 1
Mounting Type: Surface Mount (SMD)
Operating Temperature Range: −55°C to +175°C

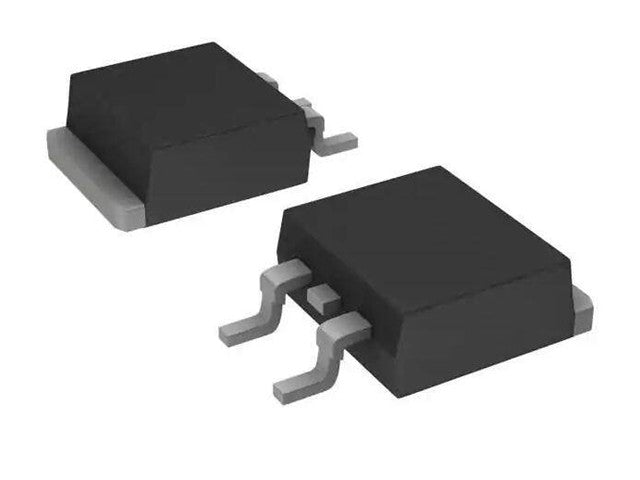

Package: D2PAK (TO-263)
Polarity: N-Channel
Maximum Power Dissipation (Ptot): 380 W
Gate-to-Drain Charge (Qgd): 68 nC
Total Gate Charge (QG) (Typical @ 10 V): 160 nC
Maximum RDS(on) @ 10 V: 1.75 mΩ
Maximum Thermal Resistance, Junction-to-Case (RthJC): 0.4 K/W
Maximum Junction Temperature (Tj): 175°C
Maximum Drain-to-Source Voltage (VDS): 40 V
Gate Threshold Voltage (VGS(th) Range): 2 V to 4 V
Typical Gate Threshold Voltage (VGS(th)): 3 V
Maximum Gate-to-Source Voltage (VGS): ±20 V

Additional Information

Device

Synchronous Rectification

Upgrade your power management with the IRFS3004 High Efficiency Synchronous Rectification SMPS, featuring a robust 40V, 280A capability. This reliable D2PAK device ensures optimal performance in demanding applications, with a wide operating temperature range and low on-resistance for enhanced efficiency. Perfect for your next project, it delivers consistent power and reliability you can trust.
