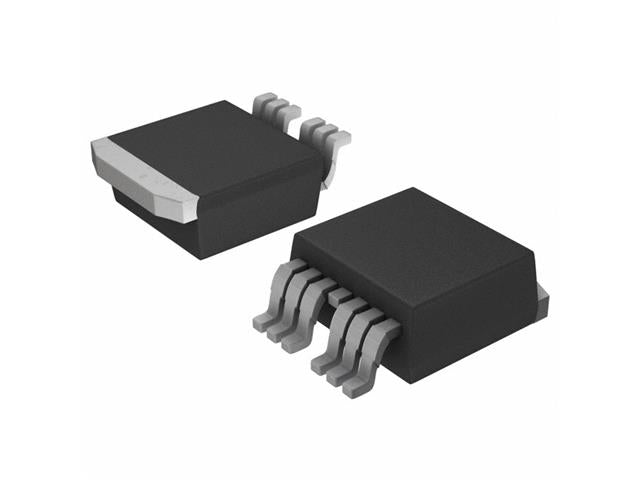

IRFS3004-7

SKU: IRFS3004-7

BRAND: IOR


High Efficiency Synchronous Rectification SMPS D2PAK (7PIN) 40V 280A 380W

High Efficiency Synchronous Rectification

Specifications

Series
Package
Tube
FET Type
Technology
Drain to Source Voltage (Vdss)
40 V
Current - Continuous Drain (Id) @ 25°C
Drive Voltage (Max Rds On, Min Rds On)
10V
Rds On (Max) @ Id, Vgs
1.25mOhm @ 195A, 10V
Vgs(th) (Max) @ Id
4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs
240 nC @ 10 V
Vgs (Max)
±20V
Input Capacitance (Ciss) (Max) @ Vds
9130 pF @ 25 V
FET Feature
-
Power Dissipation (Max)
380W (Tc)
Operating Temperature
-55°C ~ 175°C (TJ)
Mounting Type
Surface Mount


Downloads

Additional Information

Device Rectification
Type High Efficiency | Synchronous
