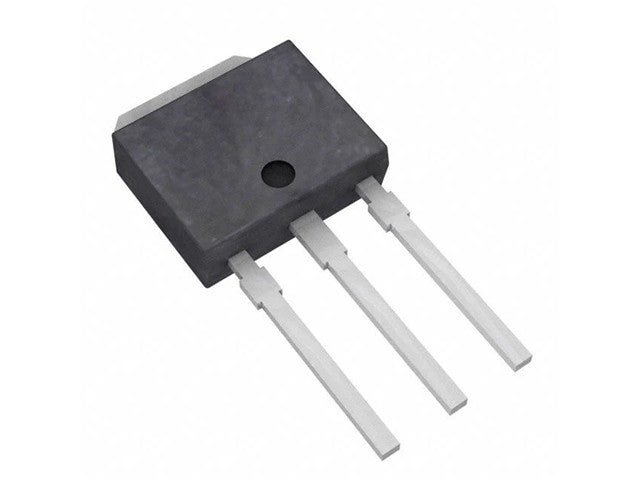

IRFU014

Name: IRFU014 - Communica [Part No: IRFU014]
Brand: Communica
SKU: IRFU014
Price: 10.50 ZAR
Availability: InStock

SKU: IRFU014

BRAND: Communica

R 12.08_{(inc VAT)}
R 10.50_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Transistors

Category: N Channel Mosfet Transistor

SIP MOS N-CH 60V 7,7A 1,5WATT I-PAK

Specifications

FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain-to-Source Voltage (VDSS)	60 V
Continuous Drain Current (ID) @ 25°C	7.7 A (Tc)
RDS(on) (Max) @ ID, VGS	200 mΩ @ 4.6 A, 10 V
Drive Voltage (Max RDS(on), Min RDS(on))	10 V
Gate Threshold Voltage (VGS(th) Max) @ ID	4 V @ 250 µA
Maximum Gate-to-Source Voltage (VGS)	±20 V
Maximum Gate Charge (Qg) @ VGS	11 nC @ 10 V
Maximum Input Capacitance (Ciss) @ VDS	300 pF @ 25 V
Maximum Power Dissipation	2.5 W (Ta), 25 W (Tc)
Operating Temperature	−55°C to +150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-251-3 Short Leads, IPAK, TO-251AA
Supplier Device Package	TO-251AA

Additional Information

Device

Transistor

Upgrade your electronics with the IRFU014 N-Channel MOSFET, offering exceptional performance with a 60V drain-to-source voltage and 7.7A continuous current. Designed for efficiency and reliability, it ensures minimal power loss with a low RDS(on) of 200 mΩ. Ideal for high-temperature applications, this versatile component enhances your projects with outstanding power handling capabilities.
