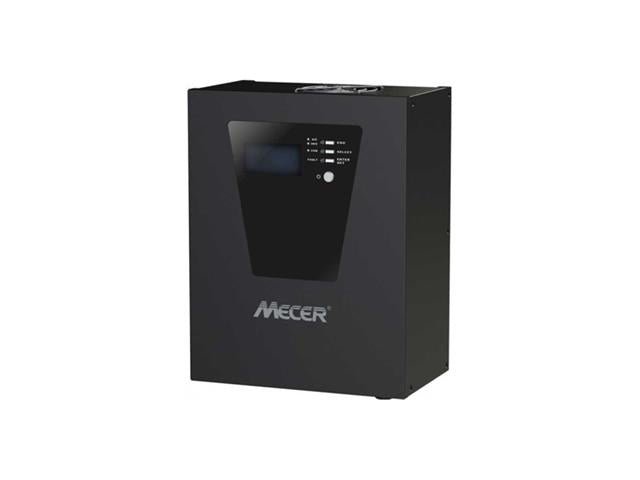

Mecer Modified Sine Wave Inverter 24VDC 1800W 24VA, Transfer Time:20ms Typical, 230VAC 50/60Hz, Overload & Short Circuit Protection, Max Solar Charge Current 55A, Built- in MPPT, MAX PV Array I/P PWR:1650W, {272x212x127} 4.8kg, IP20
Modified Sine Wave Inverter
Feature
Modified sine wave inverter
Wide input voltage range
24VDC
Overload and short circuit protection
LCD display for comprehensive information
No Batteries included
Specifications
Model: IVR-2400MPPT
Capacity: 2400VA/1800W
Power Factor: 0.75
Voltage: 220-240 VAC
Voltage Range: 90-280 VAC
Nominal Operating Frequency: 50/60Hz
Maximum Input Current: 13A
Nominal Output Voltage: 220-240 VAC
Voltage Regulation (Batt. Mode): +/-10%
Output Frequency Range: 50/60Hz
Nominal Output Current: 10.4 A
Inrush Current: 13 A
Maximum Output Fault Current: 13.6 A
Transfer Time: 20 ms
Typical Waveform: Simulated Sine Wave
Battery Voltage: 24 VDC
Maximum Battery Discharging Current: 90 A<
Floating Charge Voltage: 27,4 ± 1 VDC
CV Charging Voltage Lead Acid Battery: 28.6 VDC ±1 VDC
Lithium Battery: 29.2 ± 1 VDC
Cut Off Voltage: 21 VDC ± 1 VDC
Maximum AC Charging Current:10 A or 25 A
Additional Information
Device
Inverter
Type
Modified | Sine Wave
The IVR-2400MPPT Modified Sine Wave Inverter delivers reliable 1800W power with advanced overload protection and a fast 20ms transfer time. Ideal for solar energy systems, it features a built-in MPPT for optimized charging, ensuring you harness maximum solar energy efficiently. Experience peace of mind with durable design and real-time information via the LCD display.
