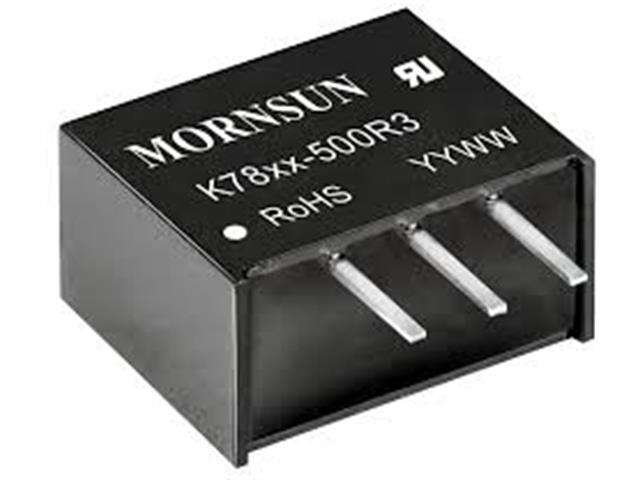

K7805-500R3

Name: K7805-500R3 - Communica [Part No: K7805-500R3]
Brand: Mornsun
SKU: K7805-500R3
Price: 92.40 ZAR
Availability: InStock

SKU: K7805-500R3

BRAND: Mornsun

In Stock
R 106.26_{(inc VAT)}
R 92.40_{(ex VAT)}

Collections: Power

Type: Power Supplies

Category: DC DC Converters

MORNSUN DC/DC Converter VI=(6.5-36V) 24V VO=5VDC 500MA OR VI=(7-31V) 12V VO=-5VDC -330MA SIL 95% Efficiency

Overview

K78xx-500R3 series are high efficiency switching regulators and ideal substitutes of LM78xx series three-terminal linear regulators. The product is featured with high efficiency, low loss, short circuit protection, support the negative output and no heat sink requirement. They are widely used in industrial control, instrumentation, and electric power applications.

Features

High efficiency up to 95%
No-load input current as low as 0.2mA
Operating temperature range: -40°C to +85°C
Support the negative output
Output short circuit protection
Pin-out compatible with LM78XX linear regulators
UL60950, EN60950 approval
