KAP218

SKU: KAP218

BRAND: Communica


Kapton Insulator Washer for TO248 TO218 TO247

Overview

Features

Specification

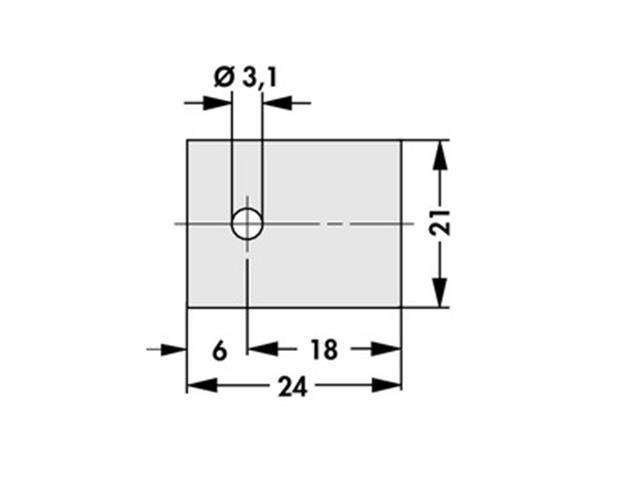

    for Semiconductor-design : TO 218, TO 247, TO 248, 24 x 21 mm
  • For transistor
    • TO 248
    • TO 218
    • TO 247
  • Material : Polyimide-carrier foil with silicone-free phase changing thermal conductive layer completely coated on both sides
  • Phase Change Temperature : 52°C
  • Thermal Resistance : 0.15 K/w [At 1 Inch2; = 6.45 Cm2; = To 3 (Kap 3)]
  • Thermal Conductivity : 0.45 W/m·K (substrate)
  • Temperature Range : -40°C ~ +150°C
  • Insulation Resistance : 1014 Ω
  • Material Thickness : 0.077mm (substrate 0.05mm)
  • Extensibility : 30 %
  • Dielectric Strength : 7.8 kV
  • Class of Flammibility : UL 94 V-0
  • Type of Delivery : Cut
