KAP220K

Name: KAP220K - Communica [Part No: KAP220K]
Brand: Communica
SKU: KAP220K
Price: 13.60 ZAR
Availability: InStock

SKU: KAP220K

BRAND: Communica

In Stock
R 15.64_{(inc VAT)}
R 13.60_{(ex VAT)}

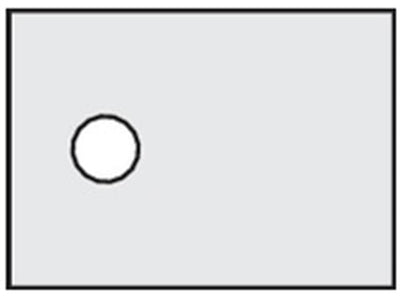

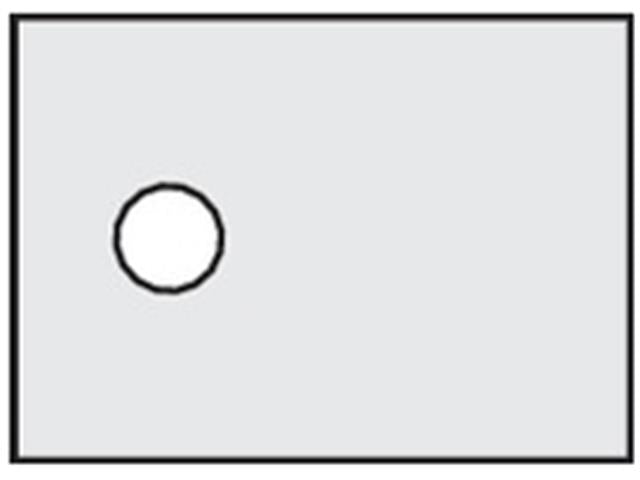

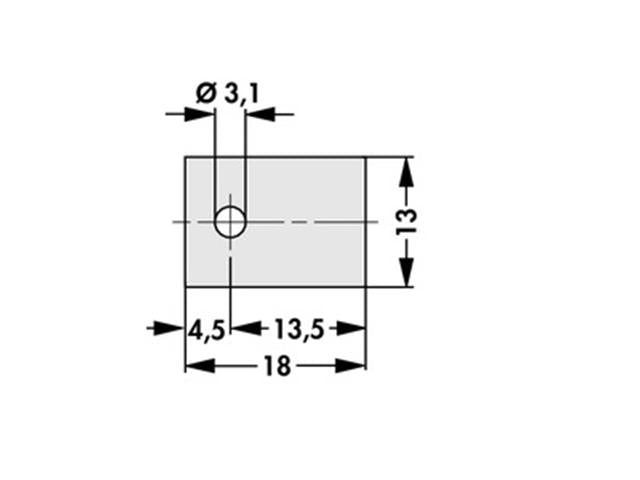

Kapton Insulator Washer for TO220

Insulator Washers

For transistor : TO 220
Material : Polyimide-carrier foil with silicone-free phase changing thermal conductive layer completely coated on both sides
Phase Change Temperature : 52 °C
Thermal Resistance : 0.15K/W [at 1 inch2; = 6.45 cm2; = TO 3 (KAP 3)]
Temperature Range : -40°C... +150°C
Thermal Conductivity : 0.45 W/m·K (substrate)
Insulation Resistance : 1014 Ω
Material Thickness : 0.077mm (substrate 0.05mm)
Elongation : 30%
Dielectric Strength : 7.8kV
Type Of Delivery : Cut
Class of Inflammability : UL 94 V-0

Device	Washers
Type	Insulator
