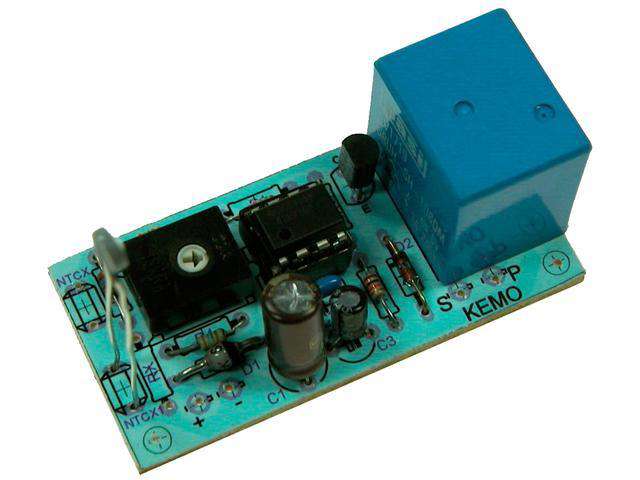

KEMO B048

SKU: KEMO B048

BRAND: Kemo


Temperature Switch 12V -30°C ~ 150°C Kit
• Function Group : Temperature

Overview

Switches according to a preset temperature a relay on or off. Ideal as thermostat, ice alarm, fire detector, etc. Temperature range: approx. -30º... + 150 ºC. Relay contact: 3 A.

Features

Specification

  • Operating voltage 12 ~ 14 V/DC
  • Current consumption approx. 100 mA at maximum
  • Temperature switching range approx. -30° ... + 150 °C
  • Relay contact 1 x ON
  • Contact capacity relay max. 25 V, 3 A
  • Board dimensions approx. 56 x 27 mm
