KEMO M012

SKU: KEMO M012

BRAND: Kemo

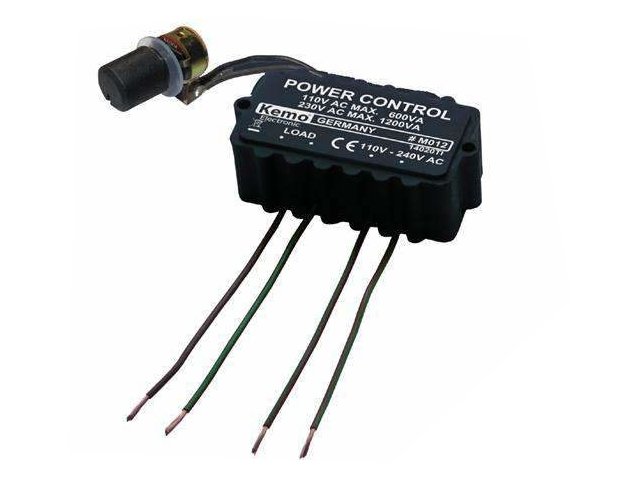

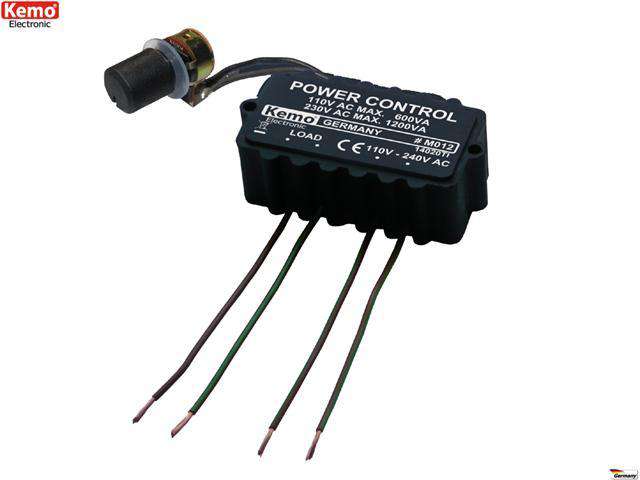

Motor and Lamp Controller 110~240V 1200 VA Kit
• Function Group : Motor Control / Speed

Overview

Regulates incandescent lamps, heaters, hand drills, etc. via a potentiometer.

Features

Specification

  • Operating voltage: AC 110~240V, 50~60 Hz
  • Operating temperature range: -30ºC ~ +60ºC
  • Max. admissible Current: 6A (constant duty 3 A), this equivalents to 230 V/AC max. 1200/600 VA or at 110 V/AC max. 600/300 VA
  • Duty cycle: 100% at 3A or 20% (max. 3 min.) at 6A respectively
  • Control: via rotary potentiometer
  • Loads: for ohmic or inductive loads
  • Dimensions: approx. 70 x 36 x 23 mm
