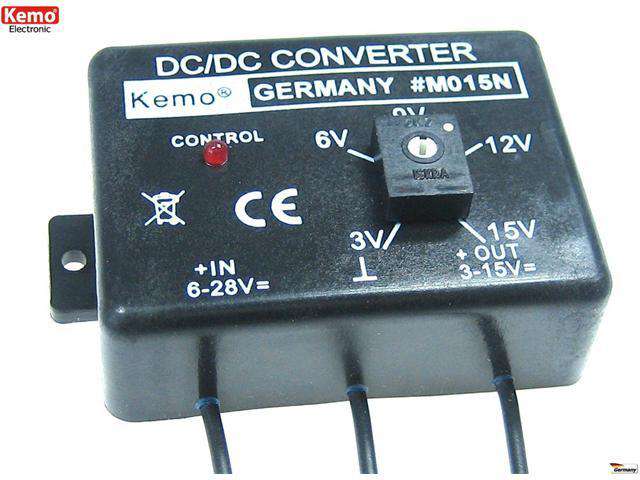

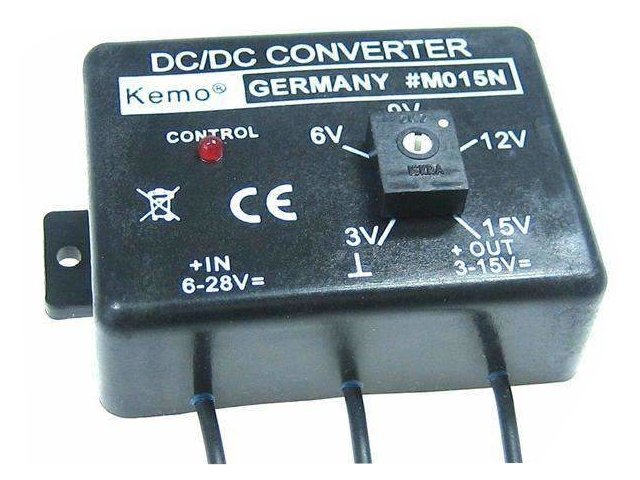

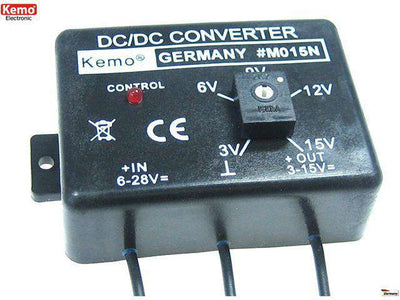

DC~DC Converter Adjustable 1.5A max Kit
• Function Group : Miscellaneous
Overview
Input: 6 ~ 28 V/DC output: 3 ~ 15 VDC. The input voltage must be at least 3 V higher than the adjusted output voltage. The adjusted output voltage is stabilized or short circuit-proof. For operation of appliances with lower voltages at a 12 V or 24 V car battery or power supplies.
Features
Specification
- Input voltage 6 - 28 VDC
- Output voltage adjustable 3 ~ 15 V/DC (electronically stabilized)
- Note The input voltage must be at least 3 V higher than the adjusted output voltage
- Max. output current 1,5 A
- Max. dissipation approx. 3 W without heat sink, approx. 10 W with heat sink (not enclosed)
- Dimensions ~ 60 x 45 x 20 mm (without fastening straps)
