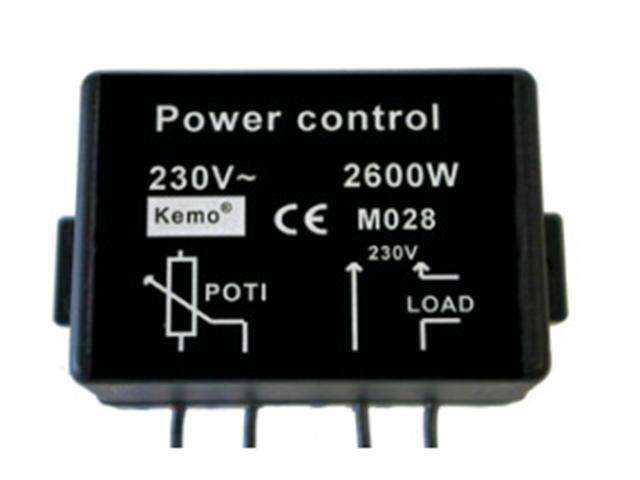

Control of resistive + inductive loads (e.g. motors, heatings, incandescent lamps, etc., if they are phase-controllable). It is not possible to control: e.g. fluorescent lamps, motors with starting capacitor. Required potentiometer: 470 K lin (not attached). At 110 VAC this corresponds to max. 1320 VA and to max. 2880 VA at 240 VAC. Available attachments: M150 - DC + pulse converter. When superposing this module, it also possible to control the dimmer module M028 with control voltages (1 - 5 VDC or 3 - 12 VDC or 6 - 24 VDC) or with TTL pulses (optionally in each case).
- Operating voltage 110 - 240 VAC
- Load max. 2600 VA
- Required potentiometer 470 k lin. (not enclosed)
- Dimensions approx. 60 x 56 x 23 mm (without fixing straps)
