KEMO M071N

SKU: KEMO M071N

BRAND: Kemo


Ultrasonic Vernim Banisher Kit
• Function Group : Alarms / Detectors / Security

Overview

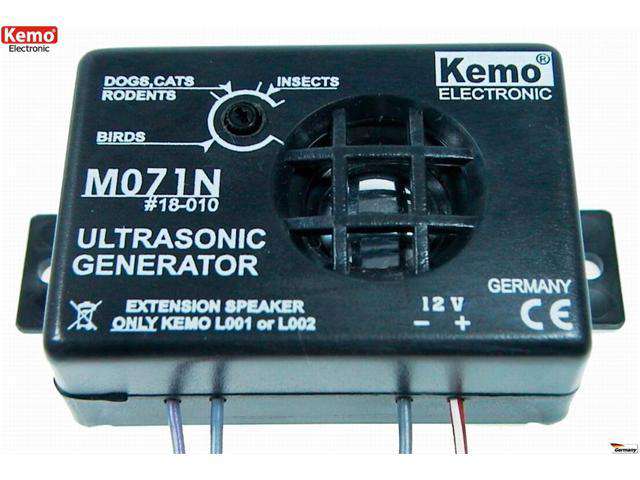

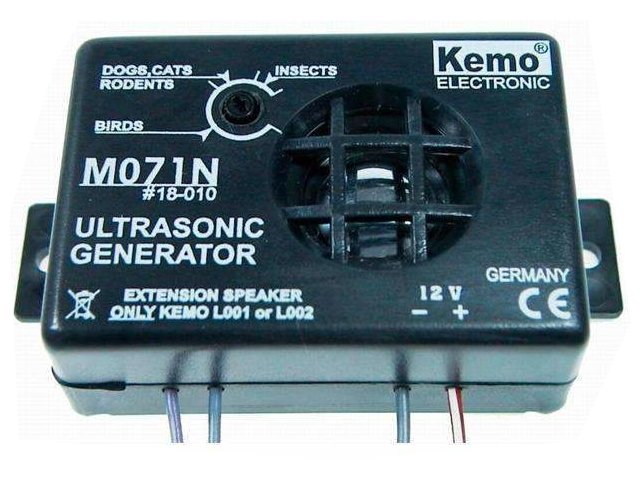

This ultrasonic generator produces pulsating and aggressive ultrasonic sounds like a siren which many animals perceive as extremely unpleasant. The generator should be used to keep away rodents, insects, crawling parasites, game and birds, etc. The frequency of the generator is adjustable between approx. 8 ~ 40 KHz. A special loudspeaker with vaulted aluminium spherical membrane has been built in to achieve a better sound distribution. A stabilised power supply 12 VDC (<60 mA) is necessary for setting into operation. Up to 4 additional loudspeakers Kemo L001 (built-in loudspeaker) or L002 (on-wall loudspeaker) may be connected, if larger rooms (>30 m²) shall be exposed to ultrasonic waves.

Features

Specification

  • Operating voltage 12 VDC (10~13.8 V/DC)
  • Current consumption ca.< 60 mA
  • Adjustable frequency ca. 8 - 40 KHz (± 15 %)
  • Frequency deviation, ca. 2x/sek, app. 2-3 KHz (automatic change of frequency, siren-like)
  • Sound pressure max. 100 dB (± 15 %)
  • Range >40m with free field of vision
  • Loudspeaker’s beam angle max. 140°
  • Connection of additional piezoelectric loudspeakers max. 4 additional loudspeakers may be connected
  • Functional display blinking LED
  • Connection via free cables
  • Dimensions ca. 72 x 50 x 31 mm (without fixing straps)
