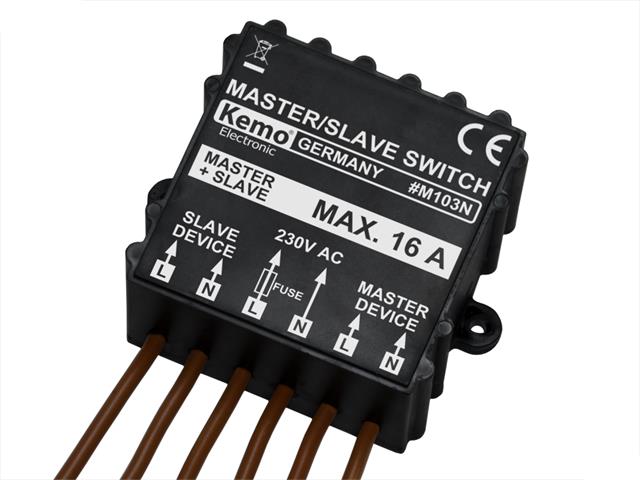

Overview
Automatically switches another load on when a machine, lamp etc., is turned on. It can monitor 1-phase or 3-phase (where a single phase is sampled) machines. On the output side, 1-phase devices (e.g. vacuum cleaner) are switched on automatically (or three-phase loads with an auxiliary relay, not included). Maximum of 15 A each. Total output: 3600 W.
Specifications
- Operating Voltage : 230 V/AC
- Maximum Currents : 15 A for the master, 15 A for the slave, but the total current must not exceed 16 A
- Example : if the master port needs 10 A, only one slave load of max. 6 A can be connected
- Tripping Power : The module connects at currents of approx. Ø 40 mA or less
- Operating temperature range : -15 ºC to + 70 ºC
- Switch Function : Relay 1 x ON max. 16 A
- Own Power Module : <0.5 W
- Dimensions without mounting brackets : 67 x 65 x 37 mm
- Connection : Connection cable (single core)
Downloads
Additional Information
Device |
Switch |
Type |
Master/Slave | 230VAC |
