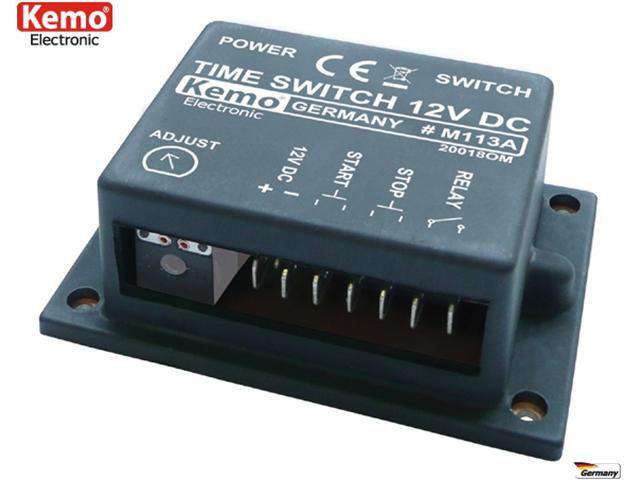

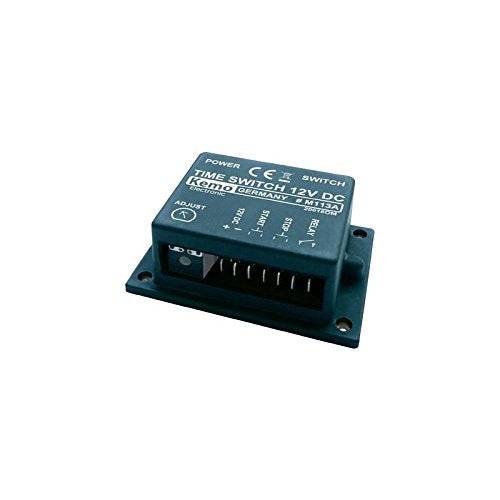

KEMO M113A

SKU: KEMO M113A

BRAND: Kemo


Time Switch 12~15VDC 1sec~30min Kit
• Function Group : Timers / Controllers / Sensors

Overview

Switches other devices on after pressing the key and switches them off again automatically by means of the installed relay point 1 x ON (max. 3 A) when the adjusted time has expired. The lapse of time may be interrupted any time with the second key. 2 push-buttons are required for operation.

Features

Specification

  • Operating voltage 12 ~ 15 VDC
  • Current consumption approx. 20 mA / 80 mA (relay off / on)
  • Adjustable time approx. 2 sec. ~ 23 min., (± 30 %)
  • Connection via flat-pin plug at the module
  • Displays 2 (1 x LED operating voltage, 1 x LED relay “ON”)
  • Relay point 1 x ON, max. 3 A max 25 V (The installed relay point may also switch up to 230 VAC, but in this case the safety regulations of VDE like protection against accidental contact, etc. have to be observed)
  • Dimensions ~ 86 x 60 x 32 mm (without fixing straps)
