Timer with adjustable times between 1 second and 2047 seconds or 1 minute and 2047 minutes. The timer switches on after pressing the key and switches off again when the adjusted time has elapsed. The time lapse may be stopped at any time by using a second key. External push-buttons may be connected (not included). The timer can also be started by external control pulses (3 - 24 V / DC) or automatically after switching on with the connection of an Elko (22 μF 50 V).
Specifications
Operating voltage : 12 V/DC ± 5%
Current consumption off-condition: < 6 mA, on-condition:< 50 mA
Switching contact : 1 x ON, max. 24 V max. 10 A AC or DC
Connection : strip terminal for additional on-key button, off-key button, switching contact, 12V operating voltage connection
Display : 1 LED each for “operation” and “switching on”
Adjustable turn-on times : 1 second up to 2047 seconds in 1-second steps or 1 minute up to 2047 minutes in 1-minute steps
Accuracy of the adjusted times : approx. ± 10%
Auto boot : When connecting a capacitor 22 μF >50 V to the terminals for the start push-button, the timer starts automatically when switching on the operating voltage
Dimensions : approx. 120 x 70 x 30 mm (without fastening feet)
Additional Information
Device

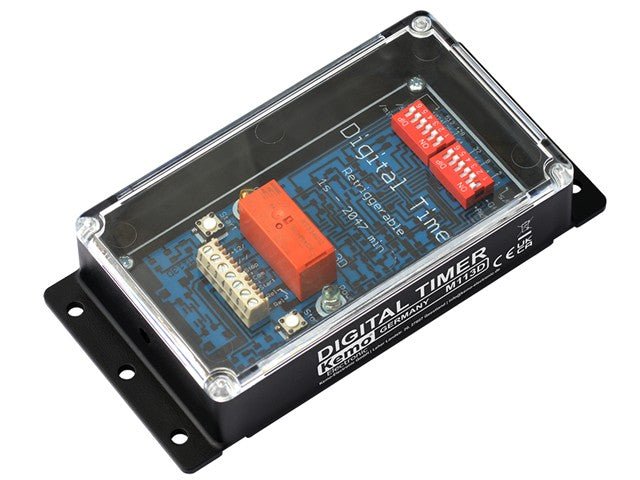

Digital Timer
Elevate your projects with the KEMO M113D Digital Timer. This versatile 12VDC timer offers adjustable settings from 1 second to 2047 minutes, allowing precise control for any application. With easy operation and compatibility for external push-buttons, it’s perfect for DIY enthusiasts and professionals alike. Enjoy reliable performance and effortless automation with the KEMO M113D, your go-to timing solution!
