KEMO M169

SKU: KEMO M169

BRAND: Kemo

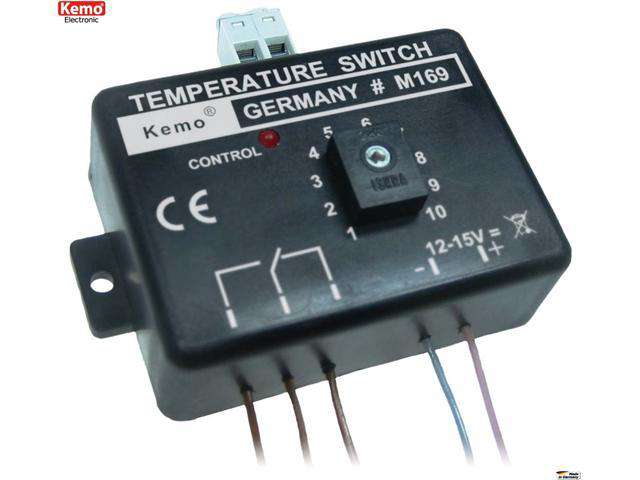

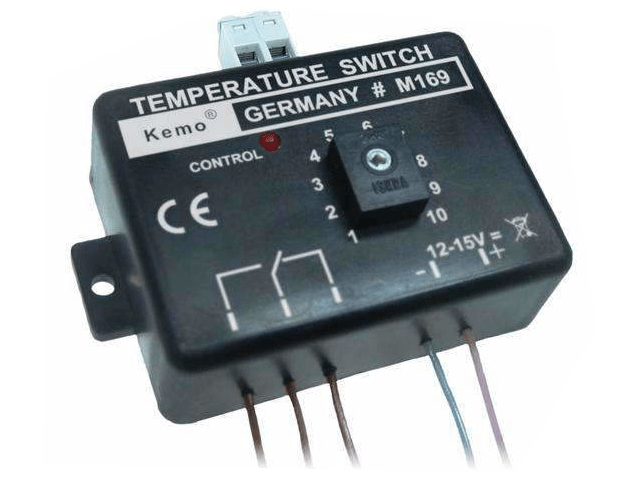

Temperature Switch Thermostat 12VDC Kit
• Function Group : Temperature

Overview

Adjustable electronic temperature switch. Sensor (Ø 5mm) may be connected with the control electronics via a cable with a length of up to 1 m.

Features

  • Operating voltage 12~15VDC stabilized (max. 0,1A)
  • Temperature range approx. 0~100°C
  • Switching output relay contact : 1xswitch-over max. 5A / 25V
  • Dimensions : 60 x 45 x 25mm (without fixing straps)

Specification
