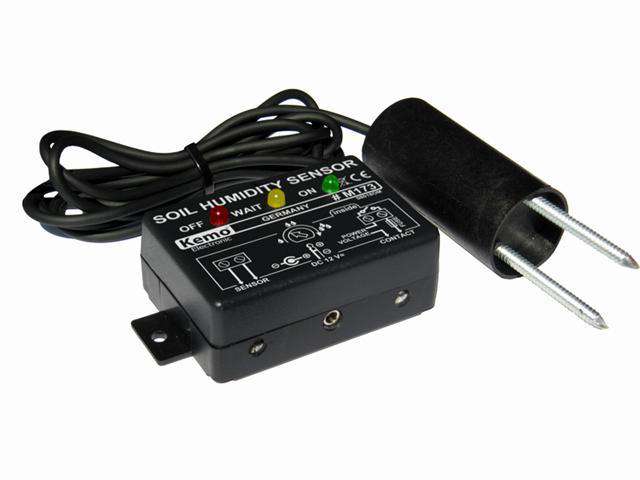

Soil Humidity Sensor Module 12V Kit

Overview

This sensor switches your garden irrigation pump or the magnetic valve on when the soil is dry and switches off when there is enough humidity in the soil. The measuring head has to be buried into the ground at the depth where it shall measure and has to be connected with the basic device via a cable. Approx. 2 m of cable are included, the sensor cable may be increased up to 20 m with normal 2-pole cable. The device is operated by means of a commercial plug power supply (12 Vdc stabilized, > 130 mA, jack plug 3.5 mm). If the garden is to be irrigated at certain times of the day or weekdays only, then insert timer before the plug power supply and program it accordingly. The soil humidity sensor starts to operate when it receives current from the power supply. Operation sequence:The soil humidity is measured after switching on the operating voltage. The connected pump is switched on for 18...30 minutes if the soil is too dry.If the soil is humid enough the device switches to "Pause" for about 18...30 minutes and makes a new measurement after that. This continues as infinite loop until the operating voltage is switched off.

Features

Specification

Operating voltage: 12 Vdc> 130 mA, jack bush 3.5 mm
Display: 3 LEDs: "On" ... "Off"..."Pause"
Switching contact: potential-free relay contact 1 x On max. 3 A (up to 25 V or also 230 V
Connections: screw terminals
Time delays: approx. 18 - 30 minutes in each case
Switching threshold: continuously adjustable
The basic device must be mounted in a dry place.
Dimensions soil humidity sensor: diameter approx. 30 x 64 mm plus 2 galvanized metal pins approx. 4 x 40mm
Dimensions basic device: approx. 70 x 50 x 28 mm without fixing legs
