Vibration switch, switches 12 V devices off when vibrations occur (e.g. motor running noises) and on with a time delay at standstill. Operating voltage: 11 - 15 V. For devices up to a current consumption of approx. 1000 mA. Indication by a flashing LED. The vibration switch switches on e.g. signal horns when a machine (e.g. pump) switches off and no longer vibrates. Or a marten repellent, if the vehicle has no more engine vibrations or driver vibrations and is parked.
Specifications
Operation voltage : 11 - 15 V direct current voltage
Own current consumption : in case of vibrations, motor runs (LED off): < approx. 0.000005A (< 5μA)
At rest, no vibrations (LED flashes) : < approx. 0.000008A (< 8μA)
Max. switching current (max. current consumption of the connected device) : 1 A
Switch-off delay during movement : approx. 3 seconds (depending on the intensity of the vibrations)
Switch-on delay at end of movement : approx. 22 seconds
Switching sensitivity : roughly adapted to the vibrations of an combustion engine in a motor vehicle
Operating temperature range : approx. -20°C to +70°C
Dimensions (without fixing straps) : approx. 60 x 45 x 20 mm
At rest (no vibrations), the input voltage (11 - 15 V/DC) is switched through to the output and the connected device is in operation.
Additional Information
Device

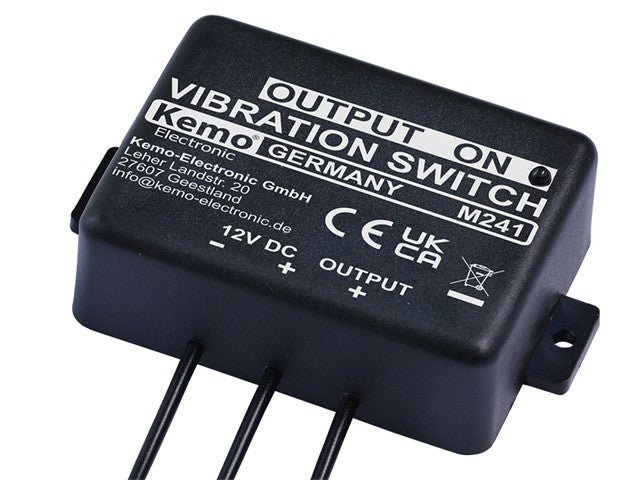

Vibration Switch
The KEMO M241 Vibration Switch is your solution for automated device control, turning off 12V devices during vibrations and back on with a time delay. Ideal for machines and vehicles, it enhances safety and efficiency while consuming minimal power. With an LED indicator and reliable switching capabilities, this compact switch is perfect for safeguarding your equipment and extending its lifespan.
