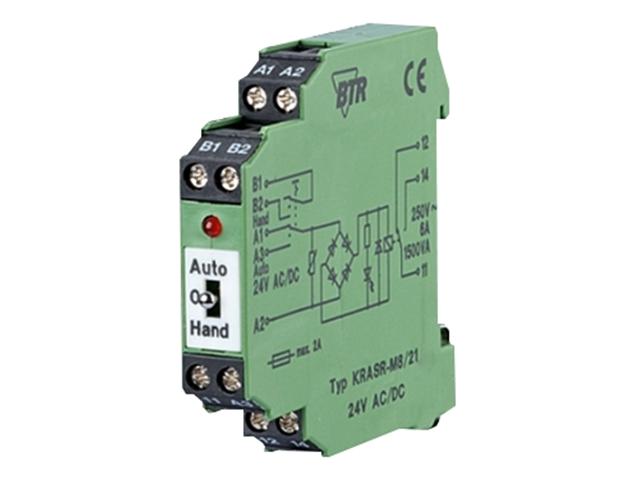

KRA-SR-M8/21 24VUC

KRA-SR-M8/21 24VUC

SKU: KRA-SR-M8/21 24VUC

BRAND: Metz Connect


In Stock
R 532.45 (inc VAT)
R 463.00 (ex VAT)

Collections: Circuit Protection

Type: Circuit Breakers

Category: Interface Module

Isolated Coupling Device Between Logic and Load 24VAC/DC - 30mA 1 C/O 6A 250VAC/DC - DIN Rail Mounting.

Coupling Device Between Logic and Load

Feature

  • Connection with screw-type terminals
  • Closed compact series
  • Integrated protective circuit
  • with manual control level

Specifications

  • Operating Voltage (AC/DC) : 24 V AC/DC
  • Power Consumption: 24 V AC/DC : 13 mA
  • Output / Contacts : 1 Changeover Contact (SPDT)
  • Output / Contact Material : AgNi
  • Output / Switching Voltage : 250 V AC/DC
  • Output / Continuous Current : 6 A
  • Output / Switch-on Current : 8 A
  • Output / Switching Frequency : 600 cycles/h
  • Response Time : 10 ms
  • Release Time : 5 ms
  • Mechanical Endurance : 2 x 107Switching Cycles
  • Electrical Endurance : 1 x 105Switching Cycles
  • Cross-section : 2.5 mm2
  • Display : Red LED
  • Dimensions (W x H x D) : 11.2 x 61.3 x 60 mm
  • Weight : 45 g
  • Operating Temperature Range : -20 °C to +55 °C
  • Storage Temperature Range : -25 °C to +70 °C
  • Ingress Protection for Housing / Terminal Block : IP40 / IP20

Additional Information

Device Device Between
Type DIN Rail | Mounting
