KSI380D40-L

Name: KSI380D40-L - Communica [Part No: KSI380D40-L]
Brand: Kudom
SKU: KSI380D40-L
Price: 505 ZAR
Availability: InStock

SKU: KSI380D40-L

BRAND: Kudom

R 580.75_{(inc VAT)}
R 505.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Electromechanical

Type: Relays

Category: Solid State Relays

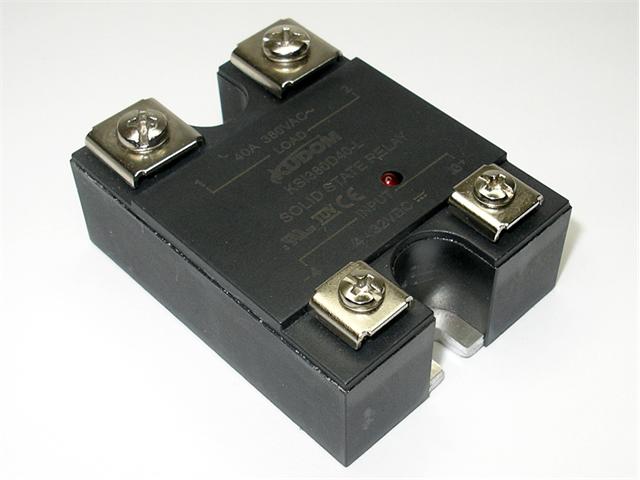

40A 380VAC Single Phase Solid State Relay with 4~32VDC Control Voltage, Zero Crossing Mode and LED Indication

40A 380VAC Solid State Relay

Features

Suitable cover : KPC-0A ; Suitable heatsink : KHS-1A , KHS-1B and KHS-1C

Specifications

Input Circuit :
- Control Voltage Range : 4~32VDC
- Minimum Turn-On Voltage : 4VDC
- Minimum Turn-Off Voltage : 1VDC
- Maximum Input Current : 25mA
Output Circuit
- Load Voltage Range : 48~440VAC
- Maximum Turn-On Time : 1/2AC Cycle + 1ms
- Maximum Turn-Off Time : 1/2AC Cycle + 1ms
- Maximum Surge Current [@10ms] : 440A
- Maximum I²t For Fusing [@10ms] : 970²A
- Transient Overvoltage : 800Vpk
Dielectric Strength : ≥4000Vrms [Input/Output], ≥2500Vrms [Ouput/Base]

Downloads

Datasheet - Kudom KSI380

Additional Information

Keywords	relay, solid state, solid state relay, kudom,
Device	Relay
Type	Solid State \| Single Phase \| AC Output
Highlights	58.6x45.7x26.5mm \| with LED \| Zero Crossing Switching Mode

Upgrade your control systems with the KSI380D40-L Solid State Relay, designed for high performance at 40A and 380VAC. Featuring a wide control voltage range of 4-32VDC and zero crossing mode for reliable switching, this relay ensures efficiency and durability. Perfect for your automation needs, it includes LED indication for easy operation.
