KTP02

Name: KTP02 - Communica [Part No: KTP02]
Brand: Communica
SKU: KTP02
Price: 11.76 ZAR
Availability: InStock

SKU: KTP02

BRAND: Communica

R 13.52_{(inc VAT)}
R 11.76_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Electromechanical

Type: Switches

Category: DIP and SIP Switches

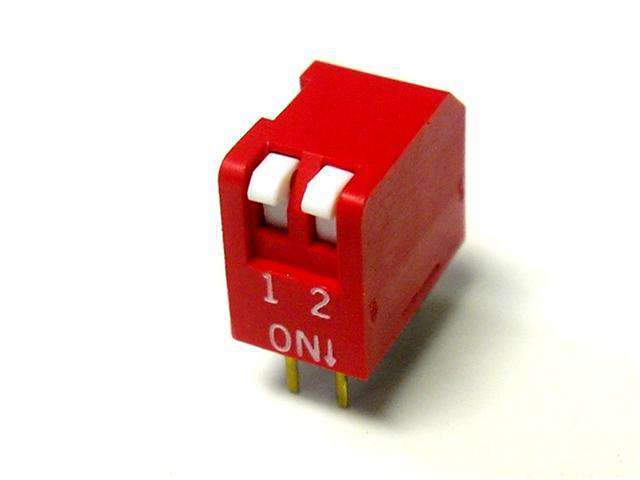

Piano Type DIP Switch • Pitch : 2,54mm • Form : 1A-SPST(NO) • 25mA-24VDC • 400gf max • PCB-Thru-Hole Straight

Overview

Features

Specification

Transition Style	Latching
Actuator Style	Short-Piano Key
Actuating Force	400gf max
Termination	PCB-Thru-Hole Straight
Switch Circuit	1A-SPST(NO)
Electrical Rating	25mA-24VDC
Electrical Life	2000 Operation Cycles
No.of Poles/Pins	2Pos
Base Colour	Red
Actuator Colour	White
Size	Pitch : 2,54mm
Mechanical Life	2000 Operations
Stroke	2.0mm
Temperature	-20°C ~ +70°C

Elevate your electronic projects with the KTP02 Piano Type DIP Switch. Designed for reliability, this 2.54mm pitch, 1A-SPST(NO) switch features a durable PCB-thru-hole design, ensuring smooth operation and longevity. With a maximum actuating force of 400gf and 2000 operation cycles, it’s perfect for any application requiring precision and efficiency.
