KTP04E

Name: KTP04E - Communica [Part No: KTP04E]
Brand: Communica
SKU: KTP04E
Price: 13.75 ZAR
Availability: InStock

SKU: KTP04E

BRAND: Communica

R 15.81_{(inc VAT)}
R 13.75_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Electromechanical

Type: Switches

Category: DIP and SIP Switches

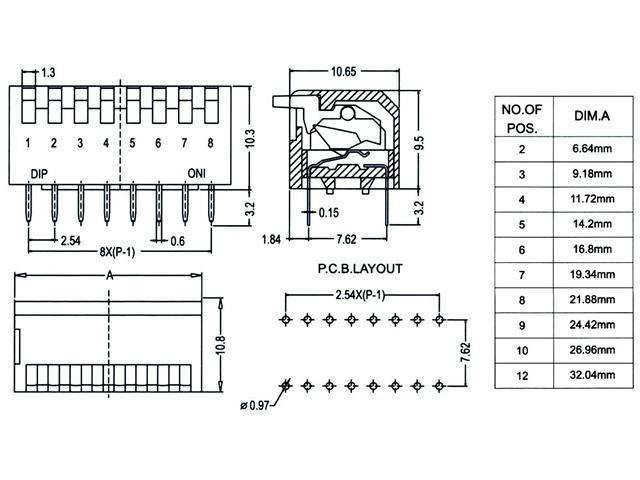

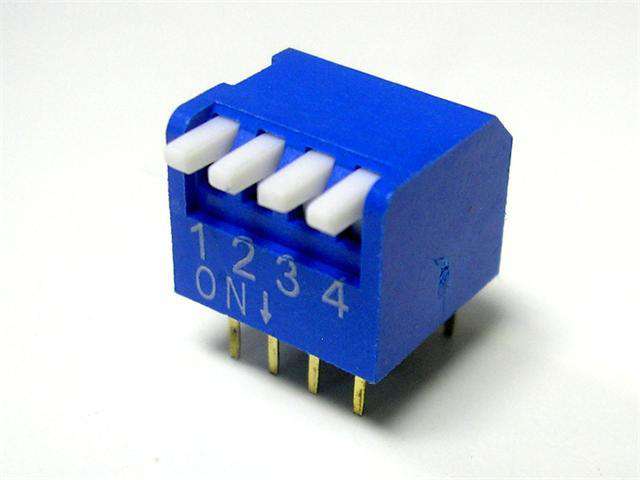

Piano Type Economy DIP Switch • Pitch : 2,54mm • Form : 1A-SPST(NO) • 25mA-24VDC • 200gf max • PCB-Thru-Hole Straight

Overview

Features

Specification

Transition Style	Latching
Actuator Style	Short-Piano Key
Actuating Force	200gf max
Termination	PCB-Thru-Hole Straight
Switch Circuit	1A-SPST(NO)
Electrical Rating	25mA-24VDC
Electrical Life	2000 Operation Cycles
No.of Poles/Pins	4Pos
Base Colour	Blue
Actuator Colour	White
Size	Pitch : 2,54mm
Mechanical Life	2000 Operations
Stroke	2.0mm
Temperature	-20°C ~ +70°C

Upgrade your projects with the KTP04E Piano Type Economy DIP Switch. Designed for reliability, this 4-position switch features a compact 2.54mm pitch, ensuring effortless installation and operation. With a 200gf actuation force and a robust electrical rating of 25mA-24VDC, it delivers consistent performance in various applications. Perfect for PCB designs, this durable switch is your go-to solution for seamless connectivity.
