KTP08

Name: KTP08 - Communica [Part No: KTP08]
Brand: Communica
SKU: KTP08
Price: 23.20 ZAR
Availability: InStock

SKU: KTP08

BRAND: Communica

R 26.68_{(inc VAT)}
R 23.20_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Electromechanical

Type: Switches

Category: DIP and SIP Switches

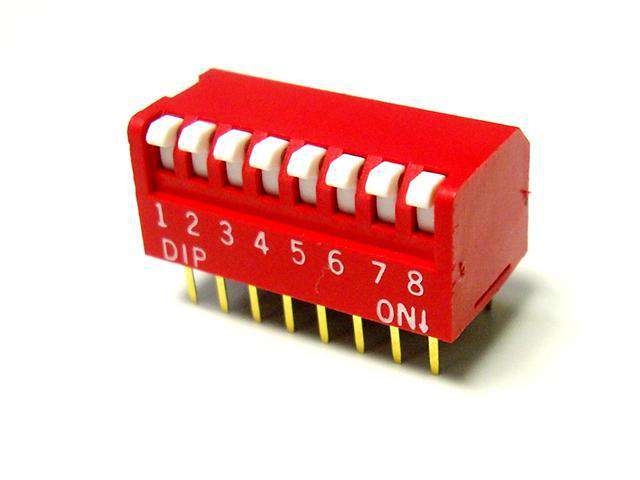

Piano Type DIP Switch • Pitch : 2,54mm • Form : 1A-SPST(NO) • 25mA-24VDC • 400gf max • PCB-Thru-Hole Straight

Overview

Features

Specification

Transition Style	Latching
Actuator Style	Short-Piano Key
Actuating Force	400gf max
Termination	PCB-Thru-Hole Straight
Switch Circuit	1A-SPST(NO)
Electrical Rating	25mA-24VDC
Electrical Life	2000 Operation Cycles
No.of Poles/Pins	8Pos
Base Colour	Red
Actuator Colour	White
Size	Pitch : 2,54mm
Mechanical Life	2000 Operations
Stroke	2.0mm
Temperature	-20°C ~ +70°C

Upgrade your electronic projects with the KTP08 Piano Type DIP Switch. Designed for reliability, this 8-position switch features a compact 2.54mm pitch, ensuring seamless integration into your PCB. With a robust electrical rating of 25mA-24VDC and a mechanical life of 2000 operations, it delivers long-lasting performance for all your needs.
