KTS02

SKU: KTS02

BRAND: Communica

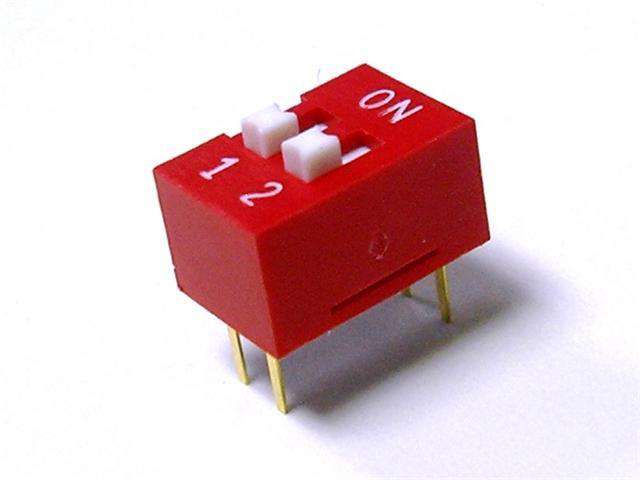

Slide Type DIP Switch • Pitch : 2,54mm • Form : 1A-SPST(NO) • 25mA-24VDC • 1000gf max • PCB-Thru-Hole Straight

Overview

Features

Specification



Transition Style Latching
Actuator Style Raised-Actuator
Actuating Force 1000gf max
Termination PCB-Thru-Hole Straight
Switch Circuit 1A-SPST(NO)
Electrical Rating 25mA-24VDC
Electrical Life 2000 Operation Cycles
No.of Poles/Pins 2Pos
Base Colour Red
Actuator Colour White
Size Pitch : 2,54mm
Mechanical Life 2000 Operations
Stroke 2.0mm
Temperature -20°C ~ +70°C
