KTS02E

Name: KTS02E - Communica [Part No: KTS02E]
Brand: Communica
SKU: KTS02E
Price: 8.25 ZAR
Availability: InStock

SKU: KTS02E

BRAND: Communica

R 9.49_{(inc VAT)}
R 8.25_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Electromechanical

Type: Switches

Category: DIP and SIP Switches

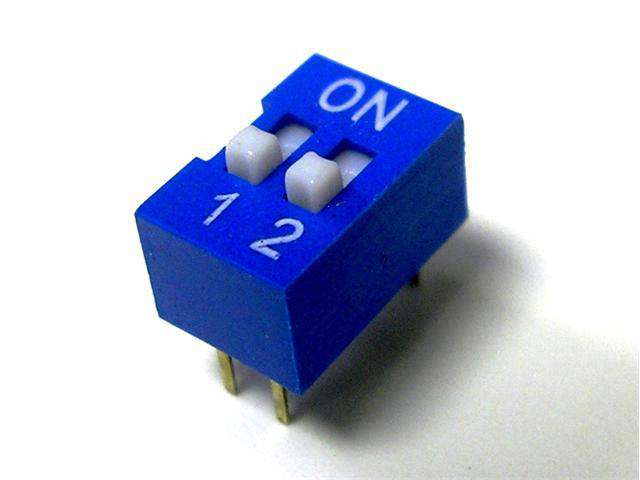

Slide Type Economy DIP Switch • Pitch : 2,54mm • Form : 1A-SPST(NO) • 25mA-24VDC • 200gf max • PCB-Thru-Hole Straight

Overview

Features

Specification

Transition Style	Latching
Actuator Style	Raised-Actuator
Actuating Force	200gf max
Termination	PCB-Thru-Hole Straight
Switch Circuit	1A-SPST(NO)
Electrical Rating	25mA-24VDC
Electrical Life	2000 Operation Cycles
No.of Poles/Pins	2Pos
Base Colour	Blue
Actuator Colour	White
Size	Pitch : 2,54mm
Mechanical Life	2000 Operations
Stroke	2.0mm
Temperature	-20°C ~ +70°C

Upgrade your projects with the KTS02E Slide Type Economy DIP Switch, featuring a reliable 1A-SPST(NO) design and a compact 2.54mm pitch. With a robust electrical rating of 25mA-24VDC and a long lifespan of 2000 operations, this switch ensures durability and performance. Perfect for PCB applications, its easy installation and sleek blue and white design make it a versatile choice for any electronic setup.
