KTS07

Name: KTS07 - Communica [Part No: KTS07]
Brand: Communica
SKU: KTS07
Price: 16.40 ZAR
Availability: OutOfStock

SKU: KTS07

BRAND: Communica

Sold Out
R 18.86_{(inc VAT)}
R 16.40_{(ex VAT)}

Collections: Electromechanical

Type: Switches

Category: DIP and SIP Switches

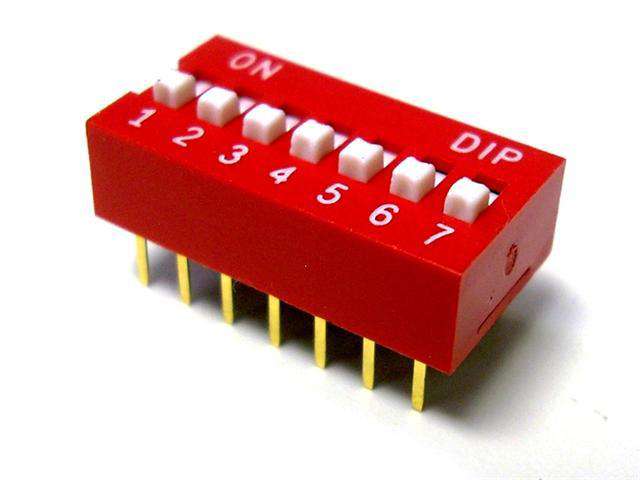

Slide Type DIP Switch • Pitch : 2,54mm • Form : 1A-SPST(NO) • 25mA-24VDC • 1000gf max • PCB-Thru-Hole Straight

Overview

Features

Specification

Transition Style	Latching
Actuator Style	Raised-Actuator
Actuating Force	1000gf max
Termination	PCB-Thru-Hole Straight
Switch Circuit	1A-SPST(NO)
Electrical Rating	25mA-24VDC
Electrical Life	2000 Operation Cycles
No.of Poles/Pins	7Pos
Base Colour	Red
Actuator Colour	White
Size	Pitch : 2,54mm
Mechanical Life	2000 Operations
Stroke	2.0mm
Temperature	-20°C ~ +70°C

Upgrade your projects with the KTS07 Slide Type DIP Switch, featuring a reliable 1A-SPST(NO) circuit and a robust 25mA-24VDC rating. Its durable design ensures 2000 operation cycles, making it perfect for long-lasting performance. With an easy PCB-thru-hole installation and a compact 2.54mm pitch, this switch enhances functionality while saving space.
