KTS09E

Name: KTS09E - Communica [Part No: KTS09E]
Brand: Communica
SKU: KTS09E
Price: 8.80 ZAR
Availability: InStock

SKU: KTS09E

BRAND: Communica

R 10.12_{(inc VAT)}
R 8.80_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Electromechanical

Type: Switches

Category: DIP and SIP Switches

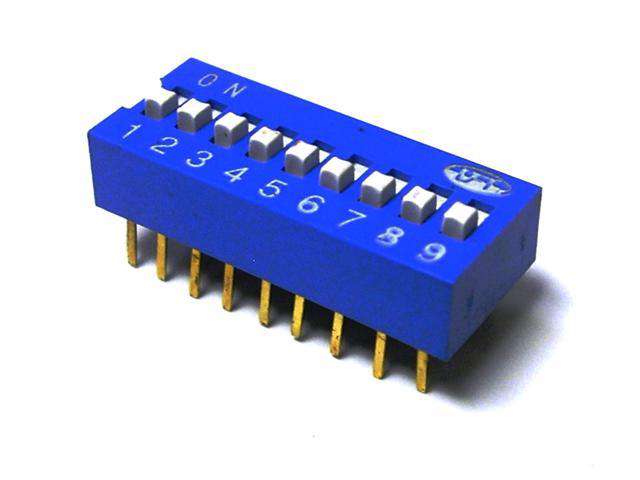

Slide Type Economy DIP Switch • Pitch : 2,54mm • Form : 1A-SPST(NO) • 25mA-24VDC • 200gf max • PCB-Thru-Hole Straight

Overview

Features

Specification

Transition Style	Latching
Actuator Style	Raised-Actuator
Actuating Force	200gf max
Termination	PCB-Thru-Hole Straight
Switch Circuit	1A-SPST(NO)
Electrical Rating	25mA-24VDC
Electrical Life	2000 Operation Cycles
No.of Poles/Pins	9Pos
Base Colour	Blue
Actuator Colour	White
Size	Pitch : 2,54mm
Mechanical Life	2000 Operations
Stroke	2.0mm
Temperature	-20°C ~ +70°C

Discover the KTS09E Slide Type Economy DIP Switch, designed for reliable performance with a 2.54mm pitch and 1A-SPST(NO) circuit. With a robust actuator and 2000 operation cycles, it ensures durability and efficiency for your PCB applications. Upgrade your projects with this versatile switch that operates seamlessly within a temperature range of -20°C to +70°C.
