KTS10E

Name: KTS10E - Communica [Part No: KTS10E]
Brand: Communica
SKU: KTS10E
Price: 12.68 ZAR
Availability: InStock

SKU: KTS10E

BRAND: Communica

R 14.58_{(inc VAT)}
R 12.68_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Electromechanical

Type: Switches

Category: DIP and SIP Switches

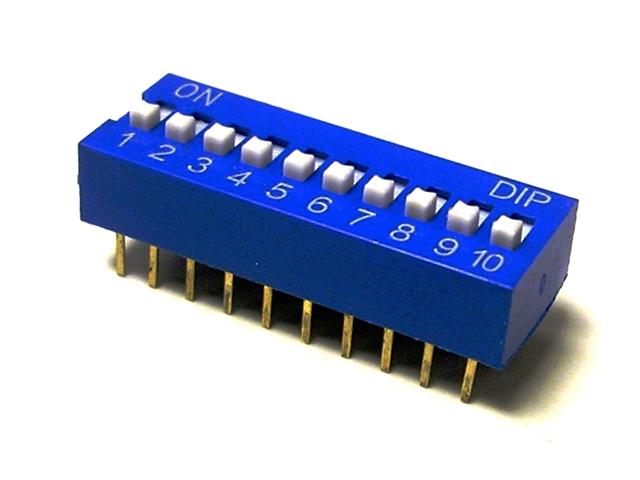

Slide Type Economy DIP Switch • Pitch : 2,54mm • Form : 1A-SPST(NO) • 25mA-24VDC • 200gf max • PCB-Thru-Hole Straight

Overview

Features

Specification

Transition Style	Latching
Actuator Style	Raised-Actuator
Actuating Force	200gf max
Termination	PCB-Thru-Hole Straight
Switch Circuit	1A-SPST(NO)
Electrical Rating	25mA-24VDC
Electrical Life	2000 Operation Cycles
No.of Poles/Pins	10Pos
Base Colour	Blue
Actuator Colour	White
Size	Pitch : 2,54mm
Mechanical Life	2000 Operations
Stroke	2.0mm
Temperature	-20°C ~ +70°C

Upgrade your electronics with the KTS10E Slide Type Economy DIP Switch. Designed for reliability, this 10-position switch features a compact 2.54mm pitch, ensuring seamless integration into your PCB projects. With a robust mechanical life of 2000 operations and rated for 25mA-24VDC, it delivers durable performance in a range of temperatures. Enhance your device's functionality and efficiency with this trusted switch solution.
