KTS12E

Name: KTS12E - Communica [Part No: KTS12E]
Brand: Communica
SKU: KTS12E
Price: 9.60 ZAR
Availability: InStock

SKU: KTS12E

BRAND: Communica

R 11.04_{(inc VAT)}
R 9.60_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Electromechanical

Type: Switches

Category: DIP and SIP Switches

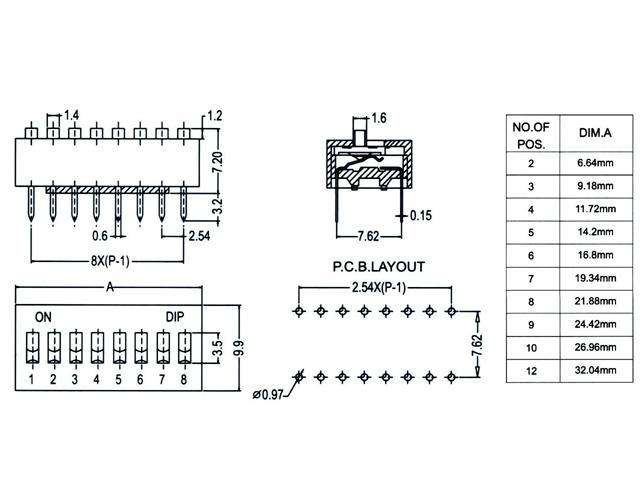

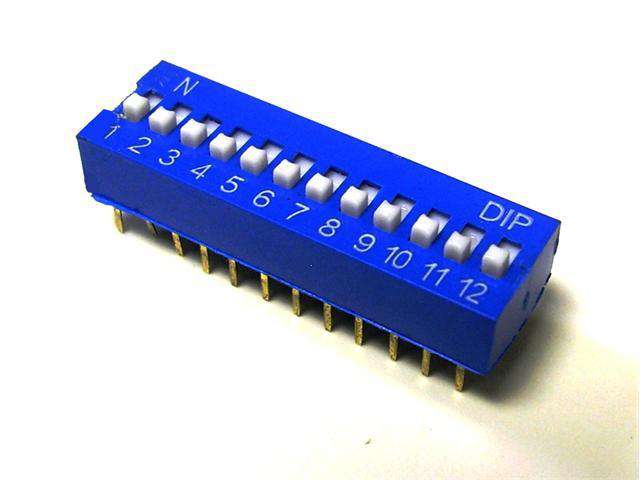

Slide Type Economy DIP Switch • Pitch : 2,54mm • Form : 1A-SPST(NO) • 25mA-24VDC • 200gf max • PCB-Thru-Hole Straight

Overview

Features

Specification

Transition Style	Latching
Actuator Style	Raised-Actuator
Actuating Force	200gf max
Termination	PCB-Thru-Hole Straight
Switch Circuit	1A-SPST(NO)
Electrical Rating	25mA-24VDC
Electrical Life	2000 Operation Cycles
No.of Poles/Pins	12Pos
Base Colour	Blue
Actuator Colour	White
Size	Pitch : 2,54mm
Mechanical Life	2000 Operations
Stroke	2.0mm
Temperature	-20°C ~ +70°C

Discover the KTS12E Slide Type Economy DIP Switch, designed for reliability with a 25mA-24VDC rating and 2000 operation cycles. Its compact 2.54mm pitch ensures seamless integration into your projects, while the robust design guarantees durability. Upgrade your circuits with dependable performance and easy installation today!
