KTSA02

Name: KTSA02 - Communica [Part No: KTSA02]
Brand: Communica
SKU: KTSA02
Price: 16.20 ZAR
Availability: InStock

SKU: KTSA02

BRAND: Communica

R 18.63_{(inc VAT)}
R 16.20_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Electromechanical

Type: Switches

Category: DIP and SIP Switches

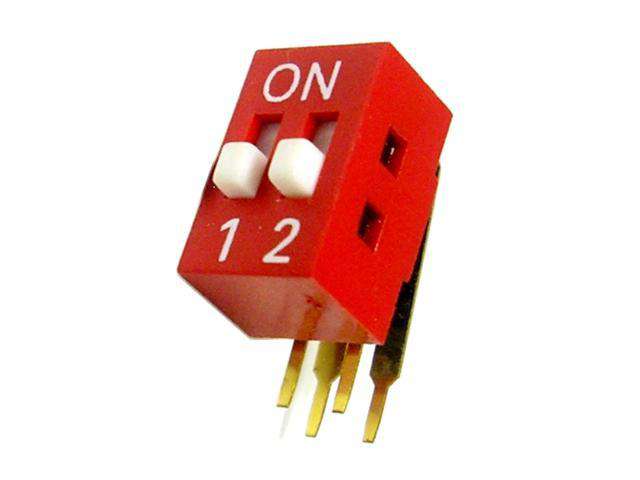

Slide Type DIP Switch • Pitch : 2,54mm • Form : 1A-SPST(NO) • 25mA-24VDC • 1000gf max • PCB-Thru-Hole Right Angle

Overview

Features

Specification

Transition Style	Latching
Actuator Style	Raised-Actuator
Actuating Force	1000gf max
Termination	PCB-Thru-Hole Right Angle
Switch Circuit	1A-SPST(NO)
Electrical Rating	25mA-24VDC
Electrical Life	2000 Operation Cycles
No.of Poles/Pins	2Pos
Base Colour	Red
Actuator Colour	White
Size	Pitch : 2,54mm
Mechanical Life	2000 Operations
Stroke	2.0mm
Temperature	-20°C ~ +70°C

Upgrade your projects with the KTSA02 Slide Type DIP Switch, featuring a compact 2.54mm pitch and a reliable 1A-SPST(NO) circuit. With durable PCB-Thru-Hole installation and a maximum actuating force of 1000gf, it ensures precise control and long-lasting performance in various applications. Perfect for your electronic designs, this switch operates efficiently within a temperature range of -20°C to +70°C.
