KTSA06

Name: KTSA06 - Communica [Part No: KTSA06]
Brand: Communica
SKU: KTSA06
Price: 15.18 ZAR
Availability: InStock

SKU: KTSA06

BRAND: Communica

R 17.46_{(inc VAT)}
R 15.18_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Electromechanical

Type: Switches

Category: DIP and SIP Switches

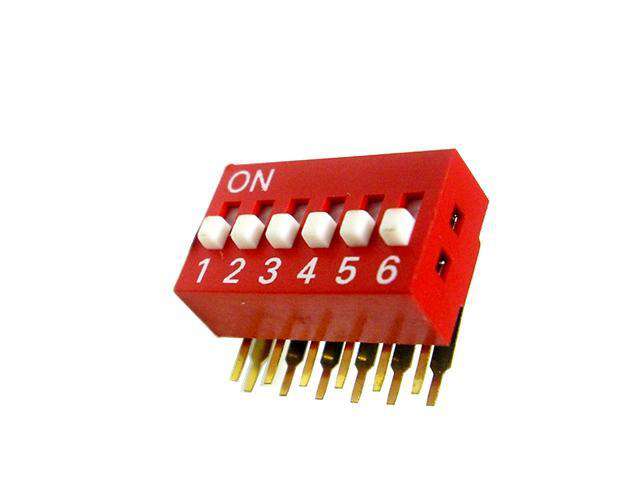

Slide Type DIP Switch • Pitch : 2,54mm • Form : 1A-SPST(NO) • 25mA-24VDC • 1000gf max • PCB-Thru-Hole Right Angle

Overview

Features

Specification

Transition Style	Latching
Actuator Style	Raised-Actuator
Actuating Force	1000gf max
Termination	PCB-Thru-Hole Right Angle
Switch Circuit	1A-SPST(NO)
Electrical Rating	25mA-24VDC
Electrical Life	2000 Operation Cycles
No.of Poles/Pins	6Pos
Base Colour	Red
Actuator Colour	White
Size	Pitch : 2,54mm
Mechanical Life	2000 Operations
Stroke	2.0mm
Temperature	-20°C ~ +70°C

Discover the KTSA06 Slide Type DIP Switch, designed for reliability and precision with a 2.54mm pitch and 1A-SPST(NO) circuit. Perfect for various electronic applications, it offers a robust 1000gf actuation force and long-lasting performance with 2000 operation cycles. Upgrade your projects with this durable and efficient switch for seamless functionality.
