KTSA08E

Name: KTSA08E - Communica [Part No: KTSA08E]
Brand: Communica
SKU: KTSA08E
Price: 21 ZAR
Availability: InStock

SKU: KTSA08E

BRAND: Communica

R 24.15_{(inc VAT)}
R 21.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Electromechanical

Type: Switches

Category: DIP and SIP Switches

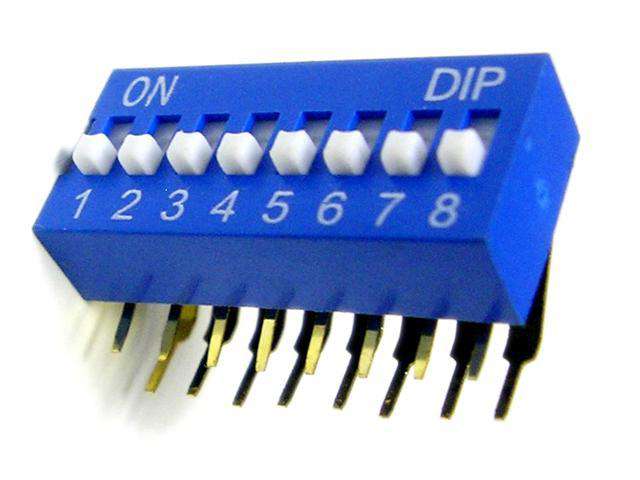

Slide Type Economy DIP Switch • Pitch : 2,54mm • Form : 1A-SPST(NO) • 25mA-24VDC • 200gf max • PCB-Thru-Hole Right Angle

Overview

Features

Specification

Transition Style	Latching
Actuator Style	Raised-Actuator
Actuating Force	200gf max
Termination	PCB-Thru-Hole Right Angle
Switch Circuit	1A-SPST(NO)
Electrical Rating	25mA-24VDC
Electrical Life	2000 Operation Cycles
No.of Poles/Pins	8Pos
Base Colour	Blue
Actuator Colour	White
Size	Pitch : 2,54mm
Mechanical Life	2000 Operations
Stroke	2.0mm
Temperature	-20°C ~ +70°C

Discover the KTSA08E Slide Type Economy DIP Switch, designed for reliable performance with a compact 2.54mm pitch. This 8-position switch features a robust 200gf actuation force, ensuring precision with every toggle. Ideal for PCB applications, it operates efficiently at 25mA-24VDC and withstands temperatures from -20°C to +70°C, making it the perfect choice for your electronic projects. Upgrade your devices with quality and durability today!
