Circular Connector M16 Cable Female Straight 5 Pole Screw Lock 6mm Cable Entry IP40 (270Deg) *** 09-0314-00-05 ***
M16 Cable Circular Connector
Downloads
Additional Information
| Device |
Connector |
| Type |
M16 | Cable | Circular |
| Highlights |
Locking Type with threaded joint | Ground contact |
| Gender |
Female |
| No. of Contacts |
5 |
| No. of Pins |
5 |
| Pin Arrangement |
270° |
| Termination |
Solder |
| Size |

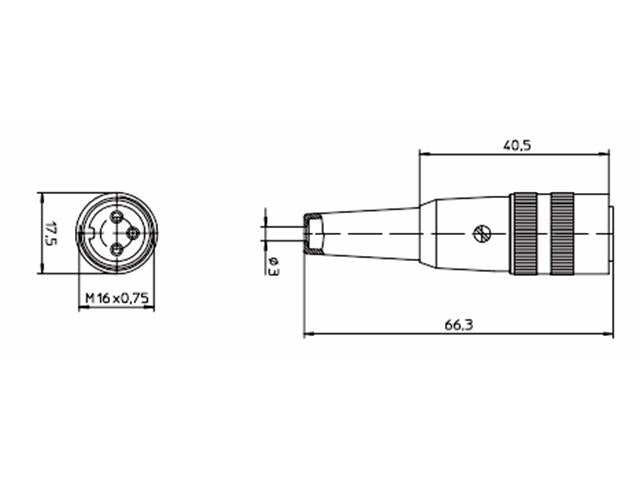

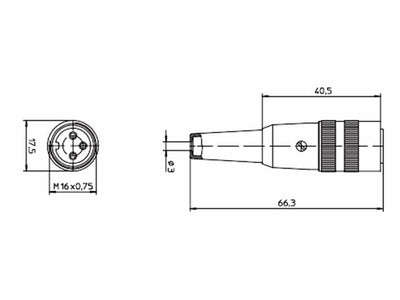

M16x0.75 |
| Contact Resistance |
<5mΩ |
| Insulator Resistance |
1012Ω |
| Cable |
Cable ø4~6mm |
| Electrical Rating |
250VAC 5A |
| Degree of Protection |
IP40 |

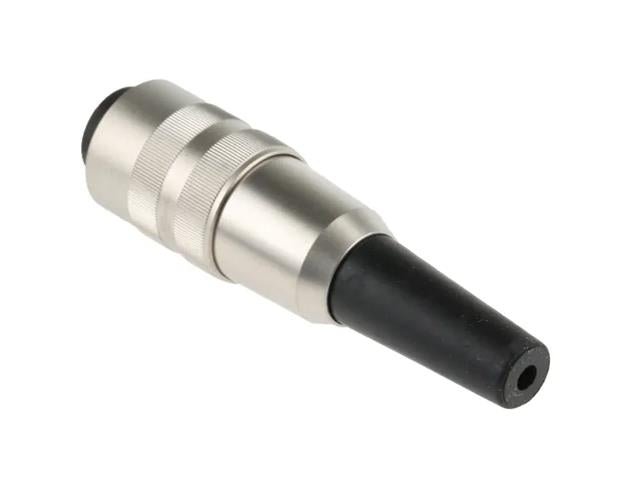

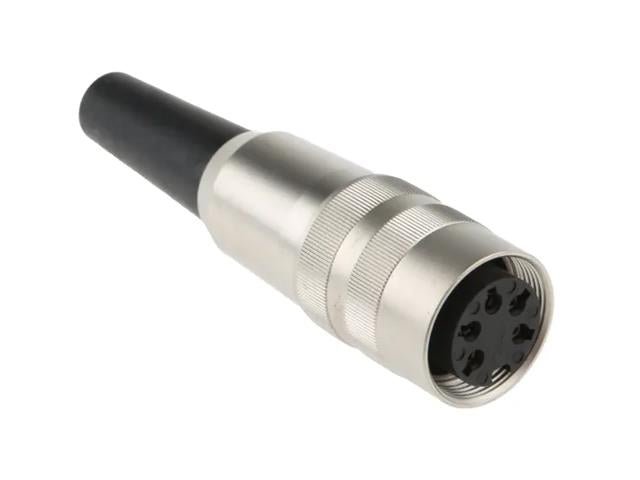

Discover the KV50-6M Circular Connector, designed for reliable performance with its 5 poles and robust screw lock mechanism. Ideal for secure connections in various applications, this female connector ensures optimal electrical conductivity and protection with an IP40 rating. Upgrade your setup with this durable M16 connector, perfect for cables with a diameter of 4-6mm.
