LD10-26B05A2

Name: LD10-26B05A2 - Communica [Part No: LD10-26B05A2]
Brand: Mornsun
SKU: LD10-26B05A2
Price: 458 ZAR
Availability: InStock

SKU: LD10-26B05A2

BRAND: Mornsun

R 526.70_{(inc VAT)}
R 458.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Power

Type: Power Supplies

Category: Surface Mount Switch Mode Power Supply, Switch Mode Power Supplies

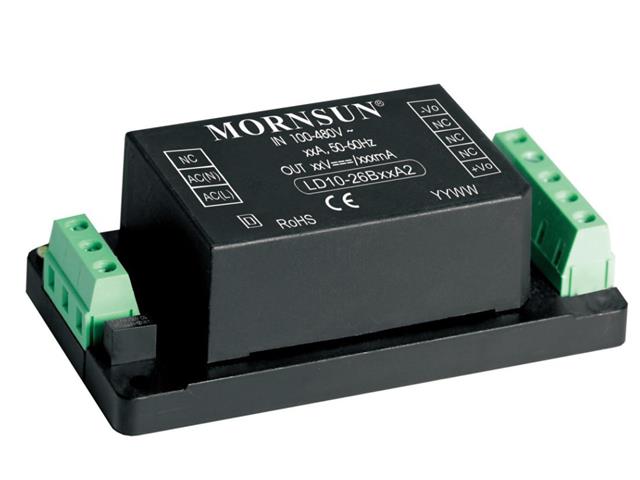

Encapsulated Surface Mount Switch Mode Power Supply Input: 90 ~ 528VAC/100 - 745VDC. Output 5VDC @ 2A. 4KVAC Isolation

Surface Mount Switch Mode Power Supply

Feature

Ultra wide input voltage range: 90 - 528VAC/100 - 745VDC
Regulated output, Low ripple & noise
Operating temperature range: -40℃ to +70℃
Output short circuit, over-current, over–voltage protection
Isolation voltage: 4KVAC
EFT /Surge: ±4KV Perf. Criteria B
EN62368 approval

Downloads

Datasheet - LD10-26B05A2

Additional Information

Device	Power Supply
Type	Surface Mount \| Switch Mode
Input Voltage	90 ~ 528VAC/100 - 745VDC
Output	5VDC
Output Current	2A
Size	96.10 x 54.00 x 38.50 mm

Upgrade your power solutions with the LD10-26B05A2 Surface Mount Switch Mode Power Supply. With an ultra-wide input range of 90-528VAC and a reliable 5VDC output at 2A, it ensures low ripple and noise for optimal device performance. Enjoy peace of mind with built-in short circuit and over-voltage protection, plus a robust operating temperature range of -40℃ to +70℃. Perfect for demanding applications, this power supply is your go-to for efficiency and reliability.
