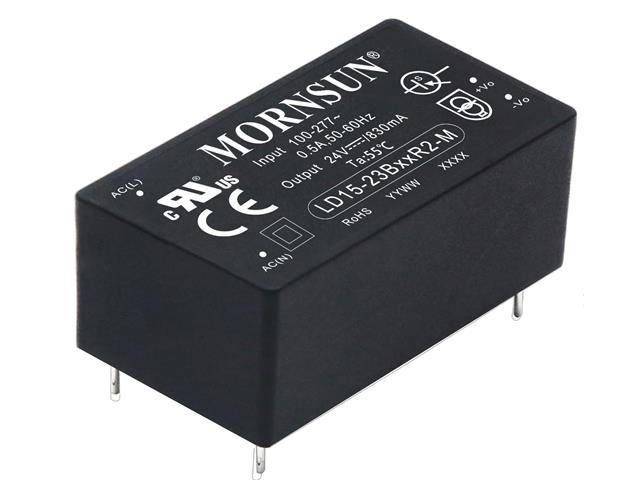

LD15-23B05R2-M

Name: LD15-23B05R2-M - Communica [Part No: LD15-23B05R2-M]
Brand: Mornsun
SKU: LD15-23B05R2-M
Price: 168.75 ZAR
Availability: InStock

SKU: LD15-23B05R2-M

BRAND: Mornsun

R 194.06_{(inc VAT)}
R 168.75_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Power

Type: Power Supplies

Category: PCB Mount Power Supplies, Switch Mode Power Supplies

Encapsulated PCB Mount Switch Mode Power Supply Input: 85 ~ 305VAC/100 - 430VDC. Output 5VDC @ 3A.

PCB Mount Switch Mode Power Supply

Feature

Ultra-wide 85 - 305VAC and 100 - 430VDC input voltage range
Operating ambient temperature range: -40℃ to +85℃
Up to 85% efficiency
No-load power consumption < 0.1W
5000m altitude application
EMI performance meets CISPR32/EN55032 CLASS B, EN55014
Design to meet IEC/EN60601-1/ANSI/AAMI ES60601-1
standards (2xMOPP)

Downloads

Datasheet - LD15-23B05R2-M

Additional Information

Device	Power Supply
Type	PCB Mount \| Switch Mode
Input Voltage	85 ~ 305VAC/100 - 430VDC
Output	5VDC @ 3A
Size	47.60 x 26.80 x 23.50 mm

Discover the LD15-23B05R2-M PCB Mount Switch Mode Power Supply, featuring an ultra-wide input range of 85-305VAC and 100-430VDC. With a compact design, high efficiency up to 85%, and a temperature tolerance from -40℃ to +85℃, this power supply ensures reliable performance in diverse applications. Upgrade your projects with a power solution that meets strict IEC/EN60601-1 standards for safety and efficiency.
