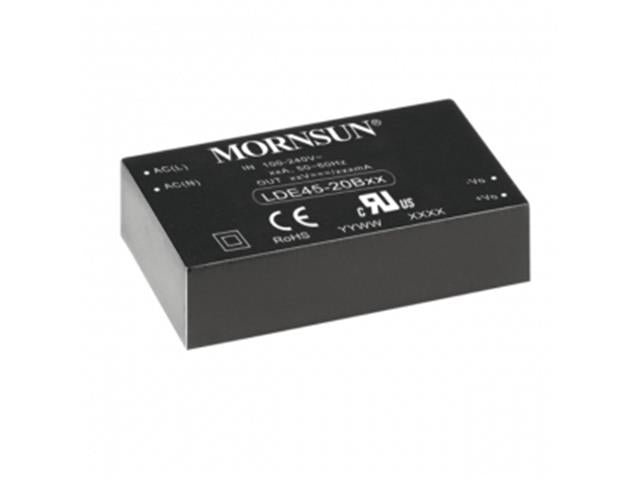

SKU: LDE45-20B12

BRAND: Mornsun

Encapsulated PCB Mount Switch Mode Power Supply Input: 85 ~ 264VAC/100 - 370VDC. Output 12VDC @ 3,8A. 4KVAC Isolation

PCB Mount Switch Mode Power Supply


  • Universal 85-264VAC or 100-370VDC input voltage
  • Operating ambient temperature range: -40℃ to +70℃
  • High I/O isolation test voltage up to 4000VAC
  • Regulated output, low ripple & noise, low power consumption
  • High efficiency, high power density
  • Output short circuit, over-current, over-voltage protection
  • Plastic case meets UL94V-0 flammability
  • EMI performance meets CISPR32 / EN55032 CLASS B
  • IEC/EN/UL62368 safety approval


Additional Information

Device Power Supply
Type PCB Mount | Switch Mode
Input Voltage 85 ~ 264VAC/100 - 370VDC
Output 12VDC
Output Current 3,8A
Size 87.00 x 52.00 x 29.50 mm
