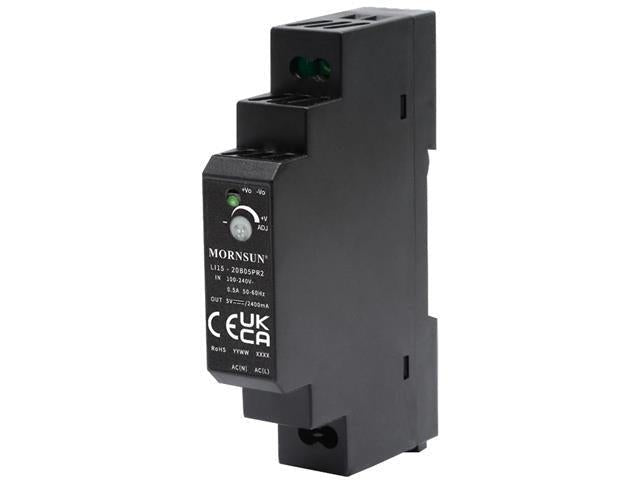

SKU: LI15-20B12PR2

BRAND: Mornsun

DIN Rail Plastic Case Slim Profile Switch Mode Power Supply Input: 90 ~ 264VAC/127 - 370VDC. Output 12VDC @ 1,25A 4KVAC Isolation

Slim Profile Switch Mode Power Supply


  • Universal 85-264VAC (277VAC available) or 120-370VDC (390VDC available) input voltage
  • Accepts AC or DC input (dual-use of sameterminal)
  • Operating ambient temperature range -40℃to+70℃
  • High I/O isolation voltage up to 4000VAC
  • Industrial-grade design
  • OVC III (EN61558-1 standards)
  • Low standby power consumption, high efficiency
  • Low ripple & noise
  • Output short circuit, over-current, over-voltageprotection
  • DIN rail TS35X7.5/ TS35X15 mountable
  • Safety according to UL/IEC62368, IEC/EN61010, IEC60335,IEC/EN61558


Additional Information

Device Power Supply
Type Slim Profile | Switch Mode
Input Voltage 90 ~ 264VAC/127 - 370VDC
Output Current 12VDC @ 1,25A
Size W-17,5mm x H-90mm x D-58mm
